Fractal 75 – Frame Kit

$22.99$32.98

(5 customer reviews)

The most durable yet sharp and lightweight 75mm ducted FPV frame!

  • *Ducts F75

    *Add 2.0mm Bottom Plate kit? (includes 1x screw kit and 2x CF bottom plates limited deal)

    Reset options
    Add AIO flight controller?
    Add Motors?
    Add FPV Camera?
    Add 40mm props?
Categories: , , , SKU: FRACTAL75-KIT

Description

  • Are you a whoop racer looking for the sharpest performance without compromising reliability?
  • Or perhaps a freestyle pilot that wants a robust frame with quick maintenance?
  • Maybe you simply want a stronger alternative to those flimsy nylon frames to keep you longer in the air?

If you answer yes to any of those, then the Fractal 75 was designed for you!





— A little backstory —

I’ve been thinking a while about whether to change that first paragraph or not, but there is no better way to put it.

If you’ve owned, tried, or even just heard of my 65mm racing whoop frame, the Fractal 65, I could simply tell you the 75 embodies the essence of it, scaled up to 40mm props

And that would be absolutely true…

But there is also a little more to it 🙂

This frame has been in fact 10 months in the making.

So much for just making the thing a little larger, you would think

But well, not quite.

One of the main requirements for that frame was a lightweight, and this has proven challenging to achieve at an enlarged scale without compromising the other main requirement, rigidity.

It took several iterations, in design, material, or supplier to find the perfect balance that would meet my expectations.

But thanks to the help and testing of my awesome team pilots, lots of crashing and breaking, it is finally at a point where I’m satisfied with it and happy to offer it out to you!

I hope you enjoy the extra thrust and stability over the 65mm, the extra prop area makes it much more versatile;

you could build it into a lightweight absolute rocket on 300mah 25k 0802, a long-range ELRS F4, or even a vacation video rig carrying a peanut/insta 360 go!

Or even go crazy and make it a pusher, or even use no ducts at all!



The choice is yours, and I’m supporting your experimentation by regularly uploading 3D models on the downloads section for you to print at home 🙂





— A quick note on bottom plate options —

All frames come with a 1.5mm bottom plate; it has been found to be the best weight/durability balance on 1S

If you’re a hard basher, want more rigidity for a 2S build or if you simply like more gravity to your builds, I’ve also cut 2mm bottom plates.

There are designed with thinner braces to make the most out of the thicker material but remain about 0.5g heavier

This makes it an extremely stiff and near indestructible platform; allows for very tight tuning.

You may choose it as an add-on, the kit includes one bottom plate and 13 extended motor screws





— So what about that frame? —

Remaining true to its original intent, the Fractal 75 features:

  • 75mm diagonal, squished X geometry, for 40mm props
  • 1.5mm Carbon Fiber / Individual Nylon ducts hybrid construction. Cut from Japanese T300 CF sheet
  • Low-profile camera mount, no props in view, no tilt offset
  • Low Center of Gravity, by bringing the AIO closer to the frame/motors
  • Allows mounting with USB pointing up for easy accelerometer calibration
  • No need for a canopy as all electronics are tucked safely between the ducts
  • Maximum rigidity where it matters most; connecting the motors to the FC
  • Easy maintenance, break one duct, replace only the single duct
  • Lightweight, about 21g with HM DiamondF4

As always, this is a project that I designed for myself first, that I put together in a product to share with any pilot that would like to experience the same level of requirements!

Designed with love, by a pilot, for pilots.

But don’t take my word for it, here’s what Team Pilot Glenn “Bellaciao” has to say about it:

“Tank like. Can slam it into the ground and it’s fine. Haven’t had any delamination or build quality issues. There’s plenty of room to add a vtx and rx, the ducts protects the parts from impact, and with 2s it truly feels like a larger quad. Facepunches will hurt.”

Or a few notes from Sushan “Brdsrtrl”

“Very stable and predictable, Makes an easy platform to make a super reliable quad, a million different configurations, Makes it easy to tuck away external parts if you aren’t using an aio.”





— What do you get? —

This frame kit contains everything you need to build your own craft, based on virtually any components.



I do however recommend a 4-1 AIO (FC/ESC/RX/VTX) to keep the part count to a minimum, but there should be enough room to stack a separate VTX or RX on top of the AIO

It has a 25.5×25.5mm mounting pattern for the AIO, and motor fixations for both 3xM1.4×6.6mm and 3xM1.6×5.5mm

The camera mount is 3D printed and universal – I will upload the STL and Step files so you may print your own spares or season them to taste 🙂





— Contents: —

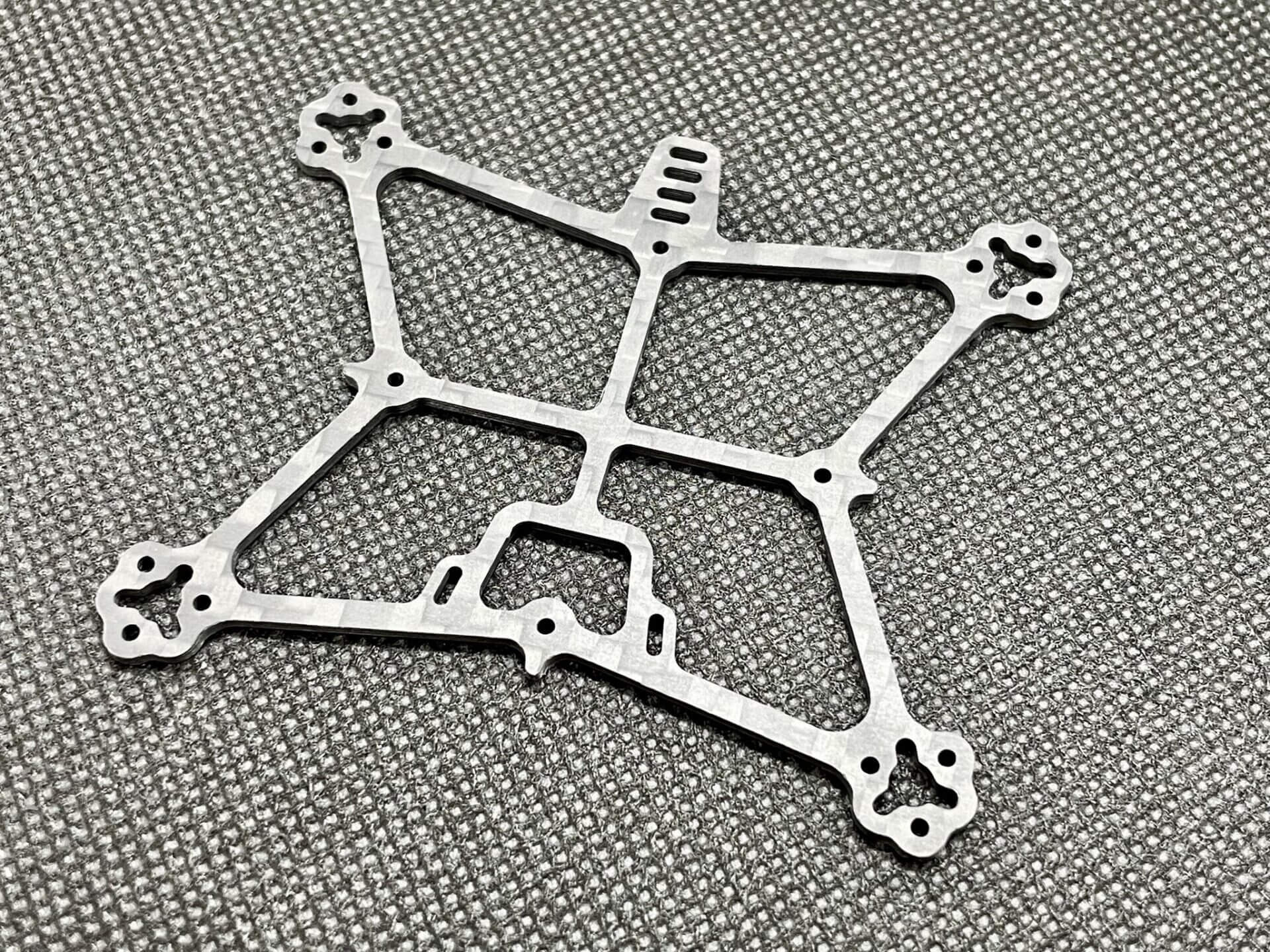

  • 1x Fractal 75, 1.5mm thick Base Plate
  • 1x Nylon frame (used by trimming the ducts off)
  • 2x Printed TPU fixations – 1x 300mah and 1x 450mah 1S (camera, front and rear battery mounts)
  • 13x M1.4x5mm steel machine screw for motors
  • 4x M1.7x5mm self-threading screw for short board grommets
  • 4x M1.7x7mm self-threading screw for long board grommets





Notes:

1-Only the frame kit is included. Full build pictures for reference only.
2-Due to continually ongoing development the actual product may differ from pictures.



— Video Reviews: —

Additional information

Weight 40.00 g
Dimensions 120 × 110 × 30 mm
Carbon Fiber

F75 Bottom Plate 1.5mm

Ducts F75

Mob7 V4 Frame, None (F75 Lite)

Screw Kit

Fractal 75 Screw Kit

TPU

F75 300mAh + 450mAh 1S

Add 2.0mm Bottom Plate Kit?

Yes (+6.99), None (1.5mm bottom plate only), Yes, with free extra heavy bottom plate (+5.99)

5 reviews for Fractal 75 – Frame Kit

  1. Anthony Knight

    AyyyKayyy Review on the F75

    So, ive been flying this frame now as my primary freestyle rig when I find epic places to freestyle. A couple items id like to highlight as its honestly mind blowing to me!
    1, It flies reallllllly good out the box. Minimal tuning needed but no need. Default pids are fine.
    2, It looks so cool in comparison to your “typical” whoop frame.
    3, I havent broken anything on this frame yet and i have beat the living heck out of it a ton. Nothing broken.

    Id say loving this frame is an understatement.

    A+++++ to Fractal Engineering for this one!

    Helpful?
    0 0
  2. RussFPV (verified owner)

    Well designed ...

    I received Fractal75 frame kit about 10 days ago, so I have not started the assembly. I have bought your Whoop Juice Transfer station (clean design). So, I decided to purchase one.
    You don’t disappoint. Thanks for the additional on the esc firmware. I am planning to use Nye PG-44A damping grease under the duct and motor.
    Keep the ideas flowing.
    thanks

    Helpful?
    0 0
  3. Mikhail

    Undestructable!

    Awesome design! I really like this frame. I’ve bought a kit with thin and thick plates to try, but the thin one is already good enough. I’ve been using it for a month and I’m really happy with it. I was not able to break anything yet. I just transferred the parts from an old whoop I built last year, so it’s a bit on a heavy side now, but still flies amazing. I had to put a crossfire, since I don’t have MP module, but I’m going to get a FC with built-in ELRS as soon as they’re back in stock. It is unfortunate that this frame is out of stock now. I wish more people could enjoy it. If you have MP module or the radio that supports FRSky protocols, definitely get the Diamond FC to save some weight, but again, it flies great with heavier ones as well.

    I would also like to thank Yves for resolving an issue with the shipment in a best possible way.

    Fractal 75 - Frame Kit
    Fractal 75 - Frame Kit
    Helpful?
    0 0
  4. BenniBlankoFPV

    Dope Aircraft!!

    Hey if you haven’t already bought this frame your late to the game!! An absolute rock!! Crashed the hell out of it and everything is perfect still.. easy to build but a little tricky to tune .. but it can be done with a little finesse!! I wanna give a big up to the team pilots for helping me out on this rig!! Rock solid machine.. I will fit other boards not just the diamond so go for it no more thinking about this purchase!! What are you waiting for ?? Go!! Do it now…

    Fractal 75 - Frame Kit
    Helpful?
    0 0
  5. 2r2 (verified owner)

    Love it

    Amazing value for money.
    I built mine with the following components
    Fractal75 frame
    betafpv 19000kv motors
    betafpv 5a elrs whoop board
    happy model ov303 vtx
    I re-driled the FC holes to a 2mm size and used nylon screws.
    Used an elastic band to mount the battery sideways
    As improvement I would like to see longer horns laterally and rear to be able to hold an elastic band

    Fractal 75 - Frame Kit
    Fractal 75 - Frame Kit
    Fractal 75 - Frame Kit
    Fractal 75 - Frame Kit
    Fractal 75 - Frame Kit
    Helpful?
    0 0
