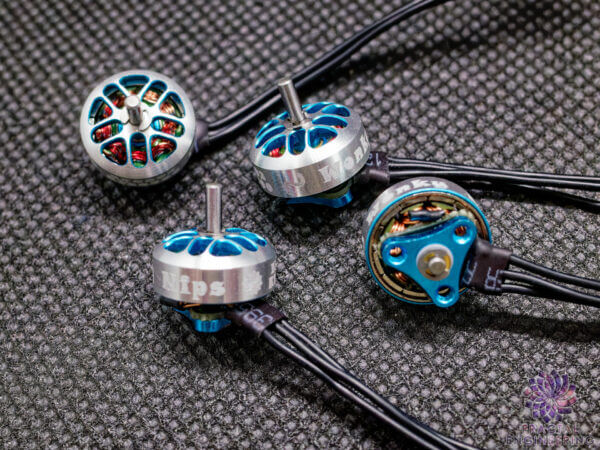

HM x FE x IL EX0802 25,000KV 1.5mm Shaft “Wonky Nips” Motor

Description

Features:

• The most lightweight 1.5mm shaft 0802 brushless spinners, less than 1.9g with wire & plug
• r o b u s t
• PCB base for easy maintenance
• signature robot lady color theme



Description:

If 2023 taught us anything, it’s that whoops are getting fast

Not only that, but with the growth of HD they’re also getting phat.

And if Newton taught us anything, that’s a recipe for snapping motor shafts.

So with Heads at Infinityloops we put our 2.5 braincells together and thought, how could we not do that so much?

What came out of this supercluster of infinite knowledge and experience,

Is a new color.

Silver to symbolize the absence of paint metallic robot lady’s soul

And Teal blue because pretty. Also to better match the Infinity Loops Signature F75 kit ofc 🙂

Oh yes, and the shaft is 1.5mm in diameter all the way through,

As well as shorter in length than the 1.0mm counterpart by about 2mm, helping recoup some of that gained girth weight

The result is a remarkably lightweight motor that doesn’t compromise on durability

Also pretty.



Brought to you by Heads and Yves, we hope you have a blast with it and it helps you not hold back as much for fear of snapping shafts 🙂



–XoXoXoXoXoXoXoXoXo

__Robot Lady



Specifications:

• KV: 25000KV
• Shaft Diameter: 1.5mm
• Configuration: 9N12P
• Stator Diameter: 8mm
• Stator Length: 2mm
• Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
• Terminals: JST1.25mm
• No. of Cells(Lipo): 1S only
• Wire length(include connector): 30mm

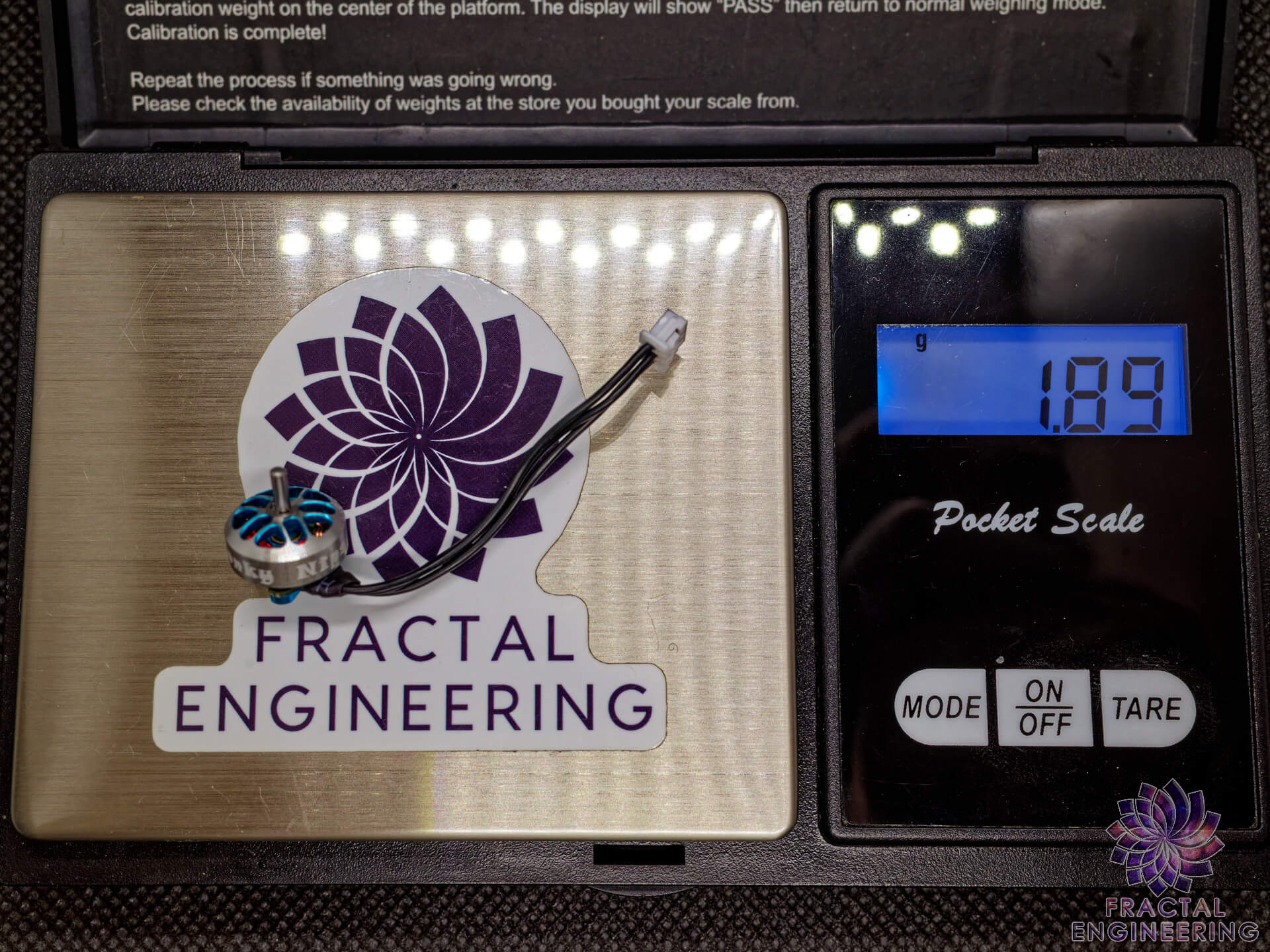

• Weight: 1.9g



Happymodel EX0802 Brushless motors benchmark
Model	No-load test	Propellers	Voltage (v)	Current (A)	thrust (g)	Power (w)	Efficiency（g/w)
EX0802 KV25000 One-Piece Design	0.45A 50840RPM @2V 25420KV	Gemfan 1219 propeller 31mm	3.7	1.03	8.4	3.811	2.204145893
			3.7	1.86	14	6.882	2.034292357
			3.7	3.05	21.4	11.285	1.896322552
			3.7	3.97	26.6	14.689	1.810878889
			3.7	4.41	27.8	16.317	1.703744561
		Happymodel 40mm 4-blade propeller	2.6	1.02	7.6	2.652	2.865761689
			2.6	1.99	13.2	5.174	2.551217627
			2.6	2.99	18.9	7.774	2.431180859
			2.6	3.98	23.4	10.348	2.261306533
			2.6	4.53	25.2	11.778	2.139582272

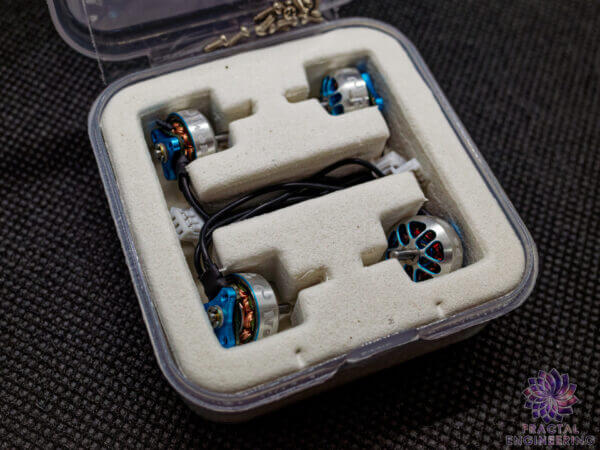

Contents:

• EX0802 25,000KV motor – 1 or 4pcs
• M1.4 x 3mm motor screw – 4 or 16pcs
