Description
Features
- A tightly integrated AIO for lightweight and robust single board analog whoop builds
- Onboard Serial ELRS and 400mW openVTX
- Great choice for a lightweight F65 or F75
Specifications:

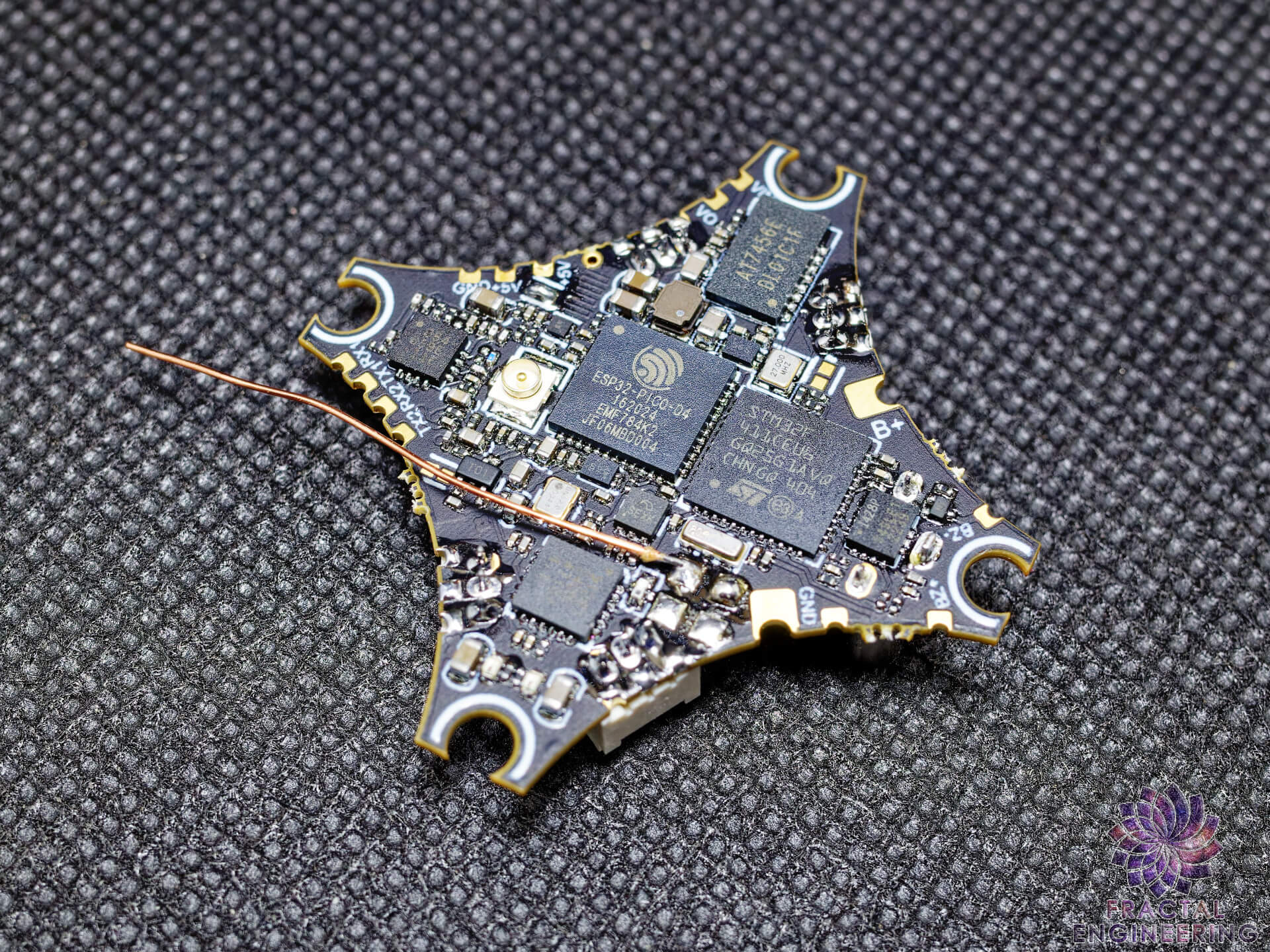

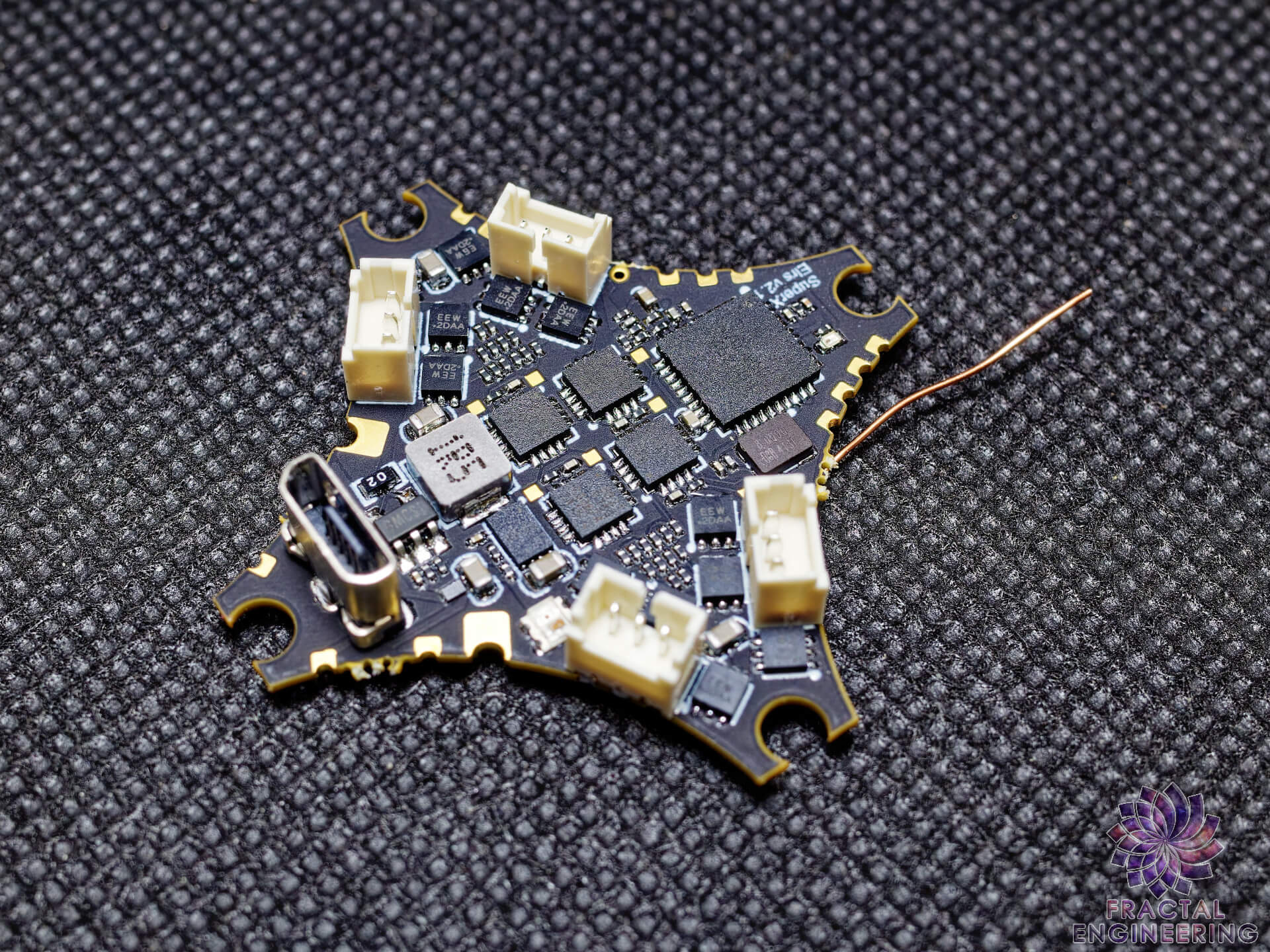

| Flight controller | SuperX ELRS AIO 5-IN-1 Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4 Sensor:BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw (MSP control) Built-in UART ExpressLRS v3.0.0 Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 1175 |
| Onboard 4in1 ESC | Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay v0.19.2 Default protocol: DSHOT300 Recommend ESC Startup power value to min1100/max1200 Firmware target: O-H-5 48KHZ |
| Onboard Serial ExpressLRS receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V3.0 RF Frequency: 2.4GHz Antenna : Enameled copper wire antenna Telemetry output Power: <12dBm Receiver protocol: Serial_based CRSF Compatible with ExpressLRS V3.x.x TX Module Could flash single ELRS receiver firmware by Wifi ExpressLRS firmware target: ExpressLRS firmware target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher) Available from Expresslrs version 3.4.0 RC2 |
| Onboard 5.8g VTX | Firmware version: OPENVTX MSP VTX PIT Mode support Channels:40ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |

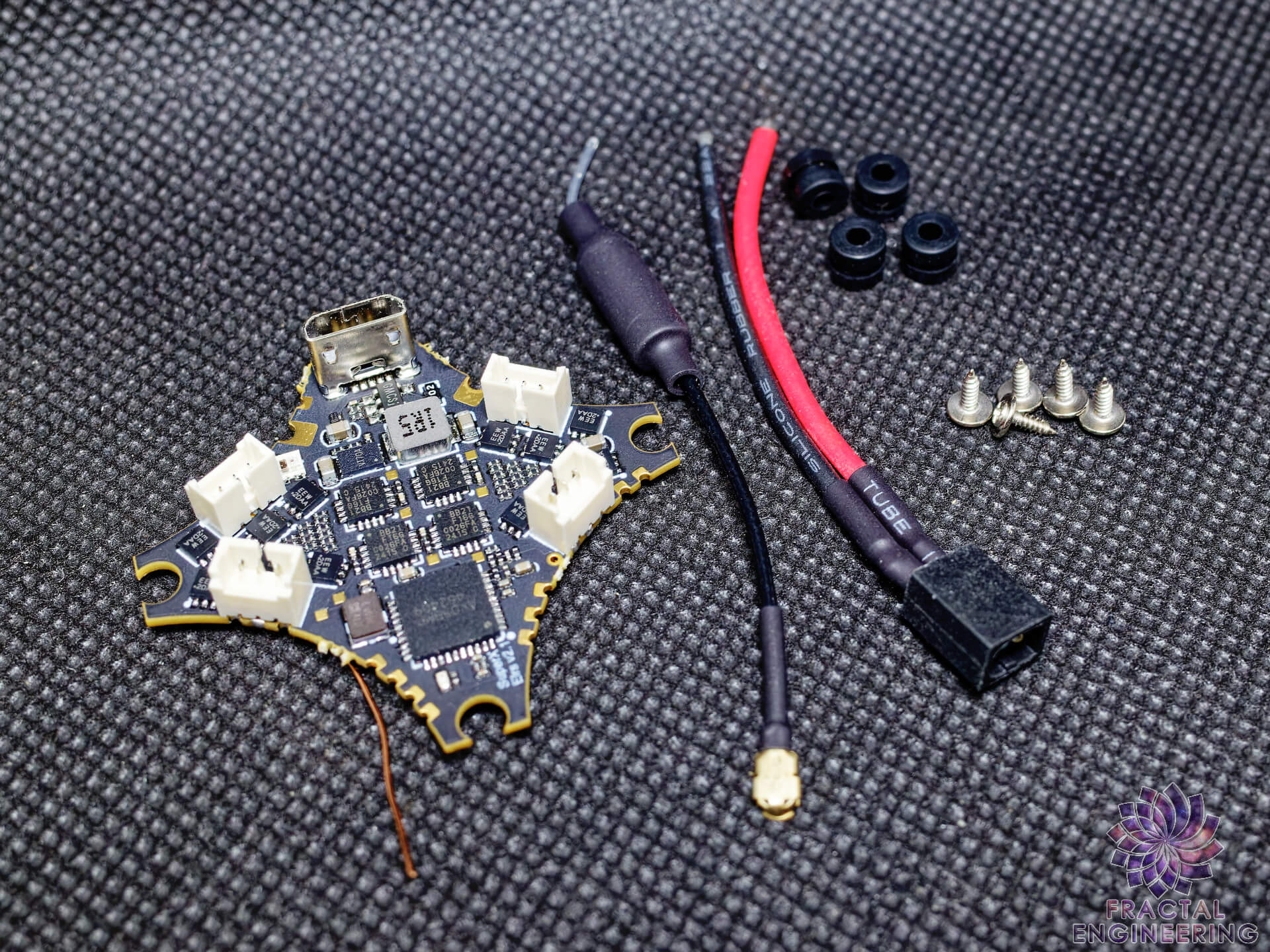

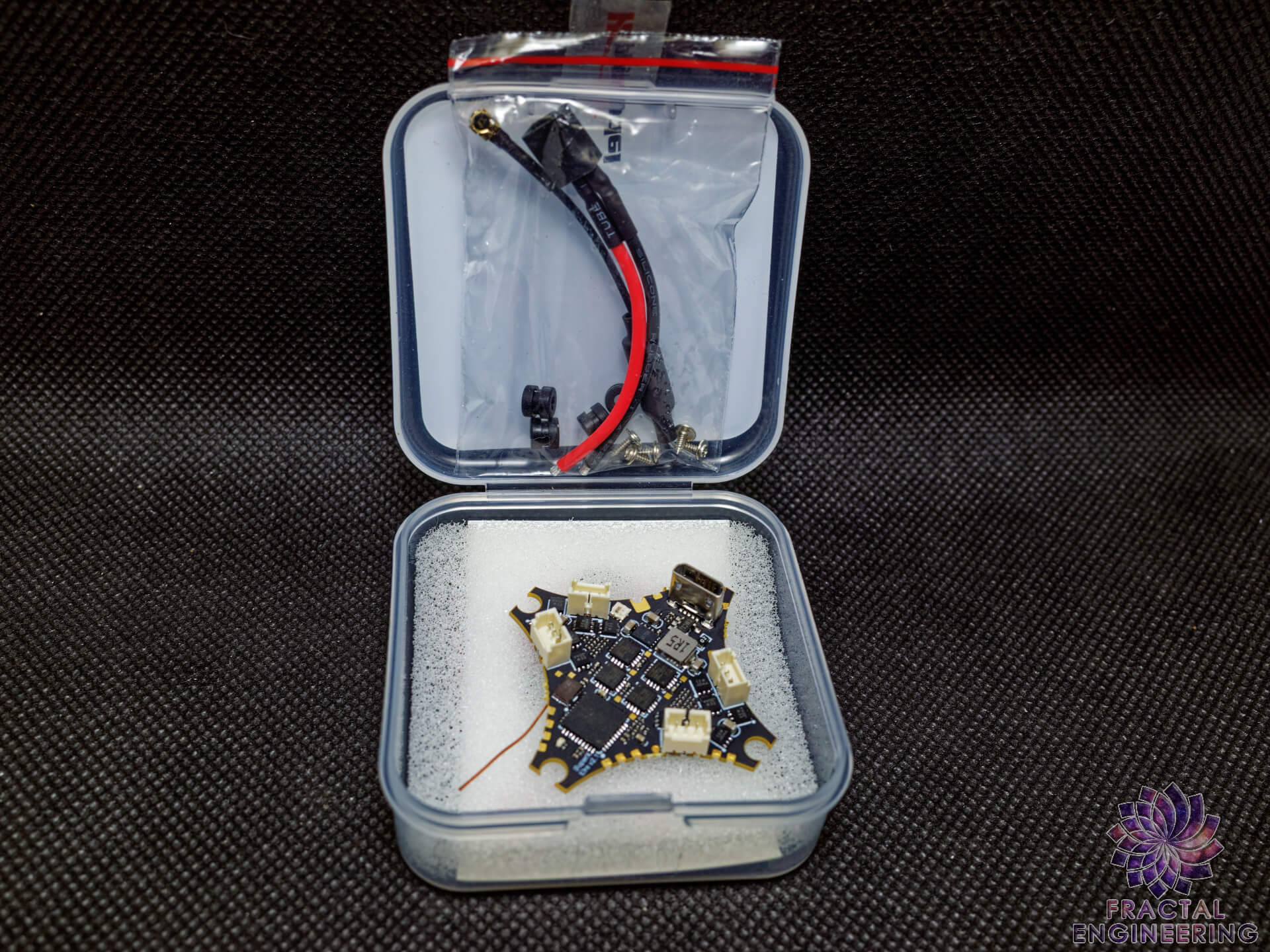

Includes:
1x CrazyX Flight controller
1x A30 pigtail (BT2 compatible)
1x 2.4G dipole antenna
4x Soft mounting grommets
4x Mounting screws
Setup:
