Happymodel X12 ELRS / X12 Lite

$63.00$65.00

(1 customer review)

Features

  • The first AIO with onboard SPI ELRS receiver and 12A ESC
  • F4 FC, 12A, 1-2S ESC, 400mw VTX and ELRS Rx all-in-one package
  • Also available in Lite version with SPI receiver but no onboard VTX for discrete vtx or HD builds
  • Fractal Special: Unsoldered motor plugs for direct motor soldering (when available)

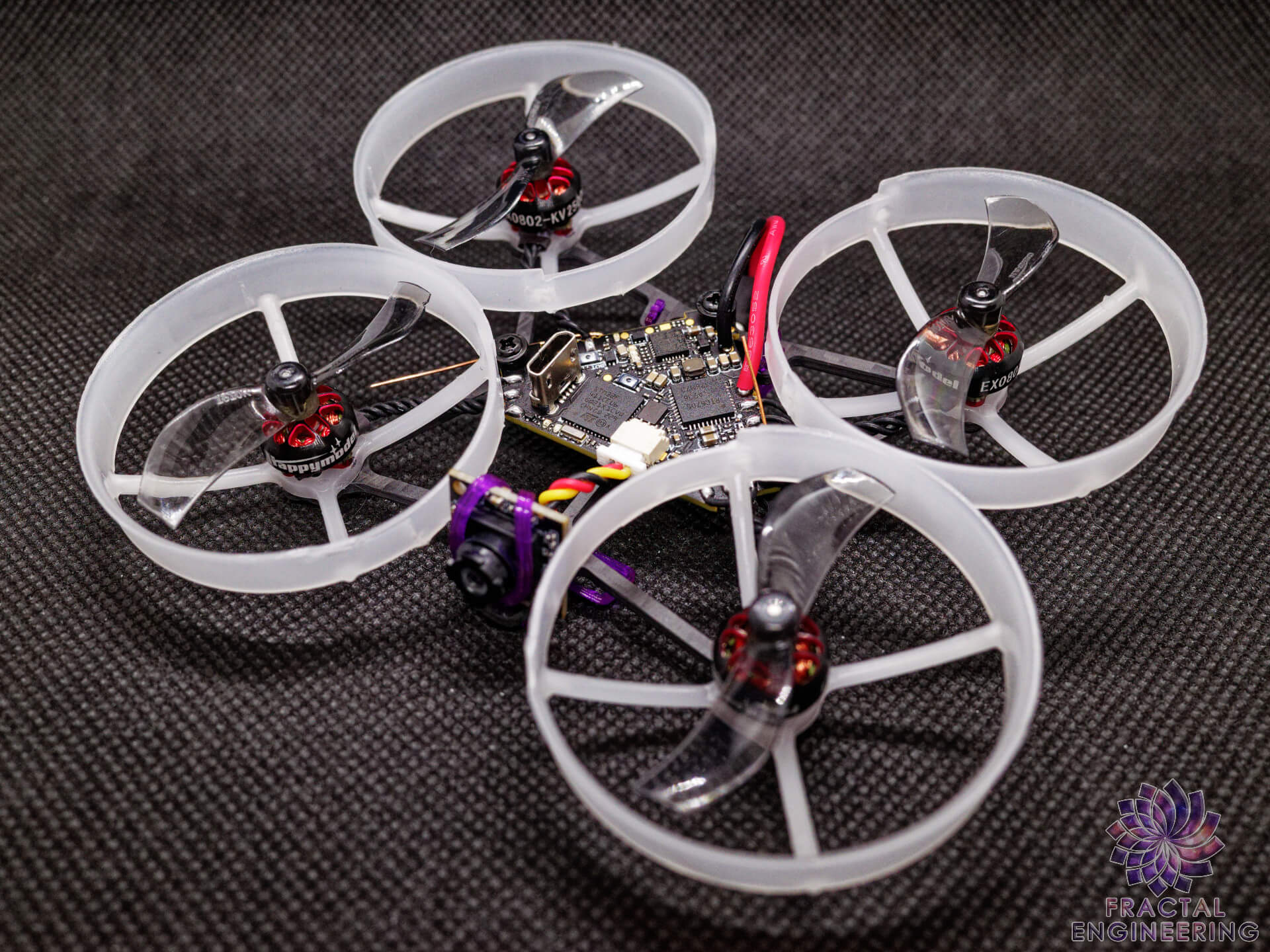

  • Excellent choice for a single board F65, F75 or Wingman

This product is currently out of stock and unavailable.

Categories: , , , , SKU: HM-X12

Description

Features

  • The first AIO with onboard SPI ELRS receiver and 12A ESC
  • F4 FC, 12A, 1-2S ESC, 400mw VTX and ELRS Rx all-in-one package
  • Also available in Lite version with SPI receiver but no onboard VTX for discrete vtx or HD builds
  • Fractal Special: Unsoldered motor plugs for direct motor soldering (when available)
  • Excellent choice for a single board F65, F75 or Wingman



Specifications:

Flight controller X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR
X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX
X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G, Frsky D8/D16
Built-in voltage meter sensor, voltage meter scale 110
Built-in current meter sensor, current meter scale 470
Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
When using Blujay firmware with 48khz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500HzExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Onboard Frsky SPI D8/D16 receiver Version SPI BUS receiver
CC2500 RF
Compatible Non-EU transmitter D8 model Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Support Frsky D8/ D16 , Redpine , SFHSS
Onboard 5.8g OPENVTX Firmware version: OPENVTX
Smart audio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

Setup:

VTX Table (paste in CLI)

# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 10 2 14 20 26
vtxtable powerlabels 0 RCE 25 100 400
save

Additional information

Weight 16.50 g
Dimensions 55 × 55 × 20 mm
AIO HM X12 Version

X12 ELRS (SPI ELRS + Onboard 400mw VTX), X12 Lite (SPI ELRS / NO VTX)
