Fractal Wingman – Frame Kit

$41.99

(8 customer reviews)

The first and only 3″ 1S 18650 quadcopter with foldable, soft mounted arms and 20+ mins of flight time!

25 in stock

  • Add HD mounting grommets?
    Add 12mm stack add-on?

    Includes all the parts to increase the stack height from 10 to 12mm if you need more building room

    Add Spare Arms?

    Includes 2x spare arms + an extra pin just in case


    Add AIO flight controller?
    Add Motors?
    Add FPV Camera?
    Add VTX?
    Add upgraded antenna?
    Add 3" props?
    Add 5V Voltage Booster?

    Feed your HD Digital or high power Analog VTX through our 5V booster to improve video feed reliability at low voltage

Categories: , , , SKU: FRACTAL-WINGMAN-KIT

Description

  • Have you ever wished you had an extra sidekick quad to help you recover your main machine from a tree?
  • Or perhaps one you could deploy from the comfort of your car to recon a new spot without the hassle of going out and walking there?
  • Or maybe just an ultra-compact video rig to give your loved one an excuse to rip a few packs under the pretense of documenting your vacation?

Well, the Wingman is all of that, and much more!

The idea for this frame stemmed from Dave C’s nano long-range, concept -obviously!-

I was immediately hooked on the idea of being able to pop a single, general-purpose 18650 li-ion cell on a quad and cruise around longer than with any of my freestyle rigs

Back then the only frame option was the original 3D printed one

I knew I could greatly improve upon the concept by utilizing carbon fiber, but I also knew that by the time I would be ready to release, I wouldn’t be the only one with a CF arms nano LR

So I decided to up it a notch; I’ve had this idea of folding arms in my head for a while, and the lightweight, low load use case of that format would be the best proving ground for it

Over a year in the making, after many iterations and countless hours of testing and tuning later what is the result?

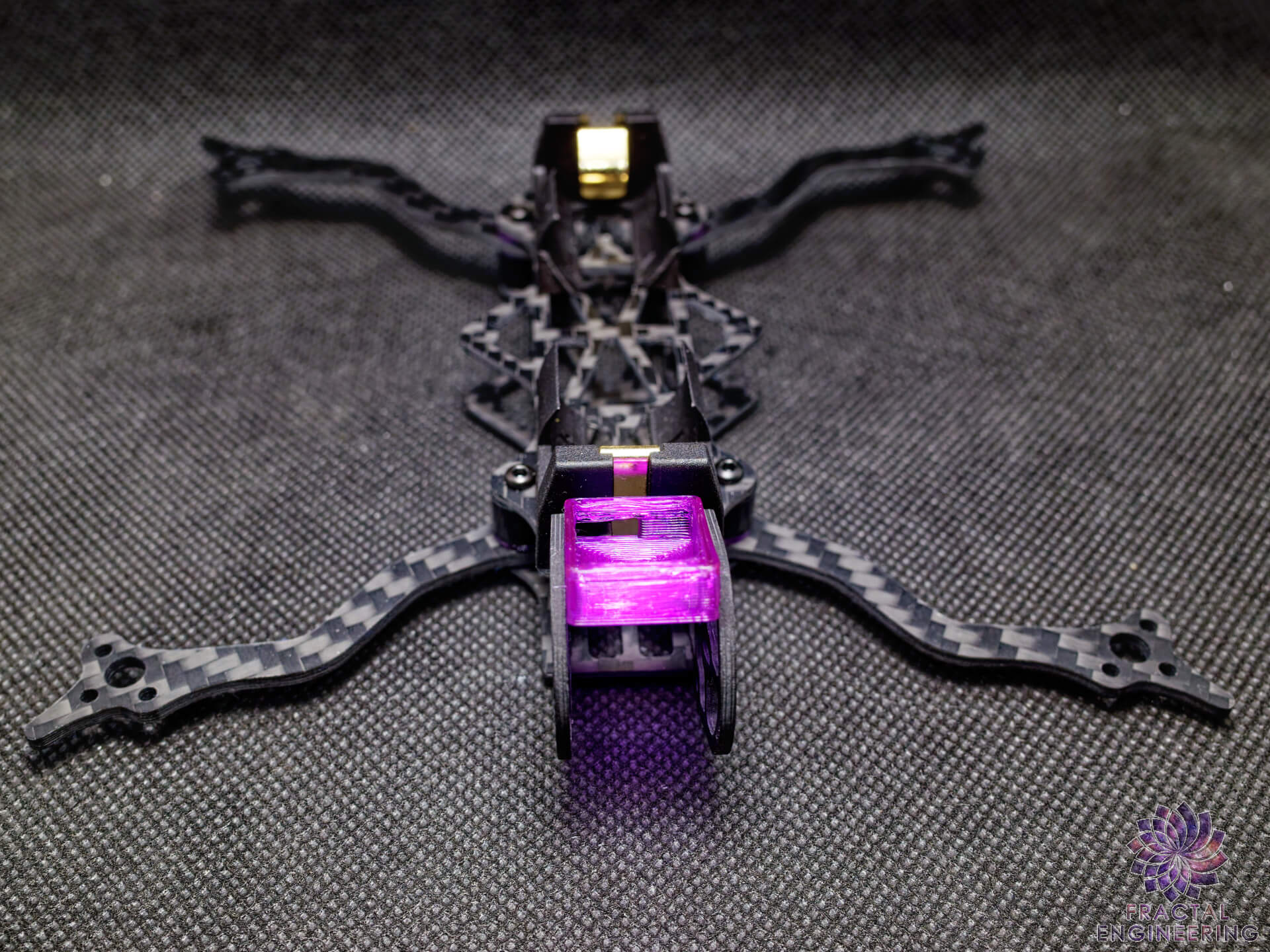

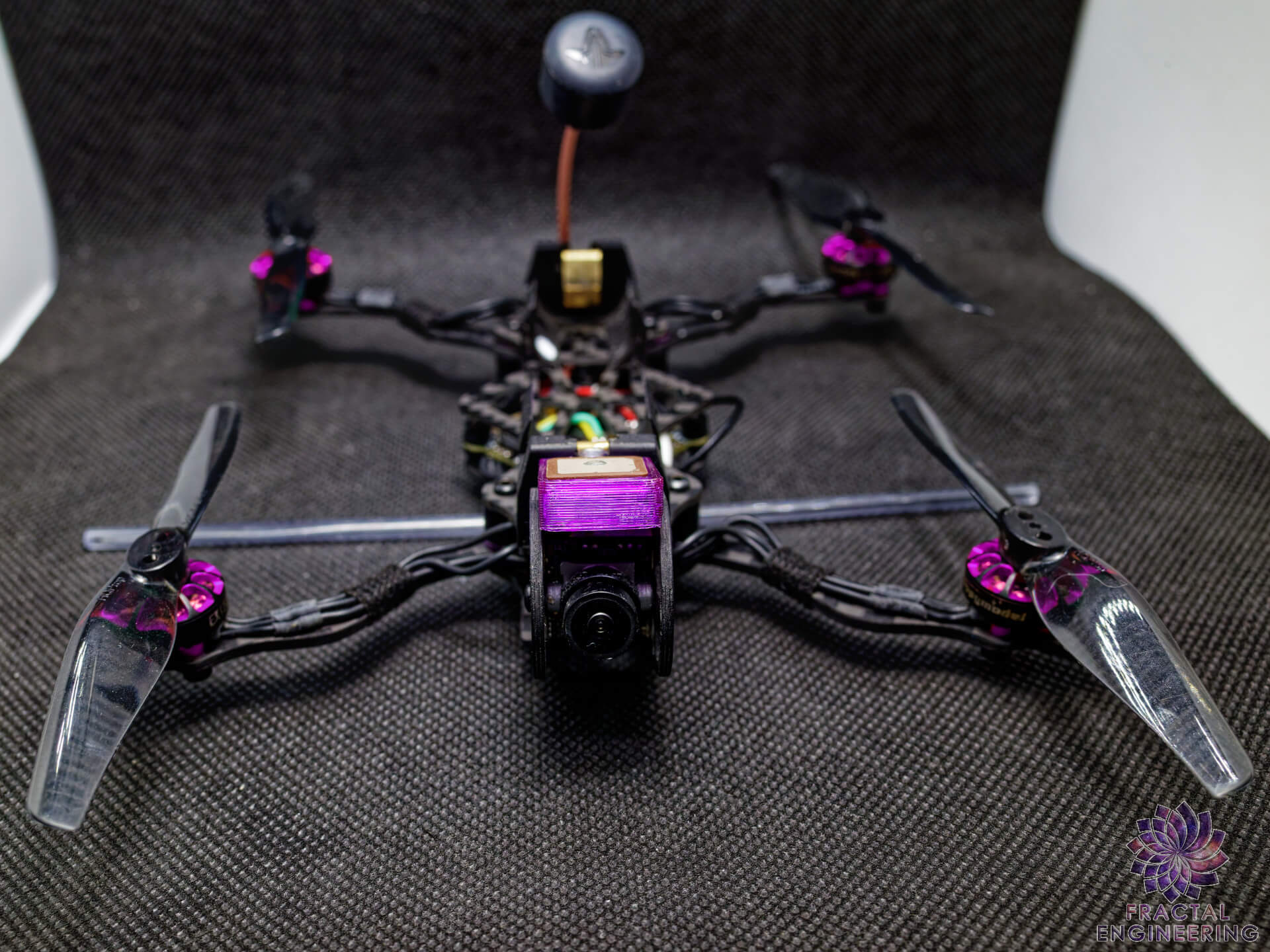

The first-ever foldable and soft mounted arms in FPV

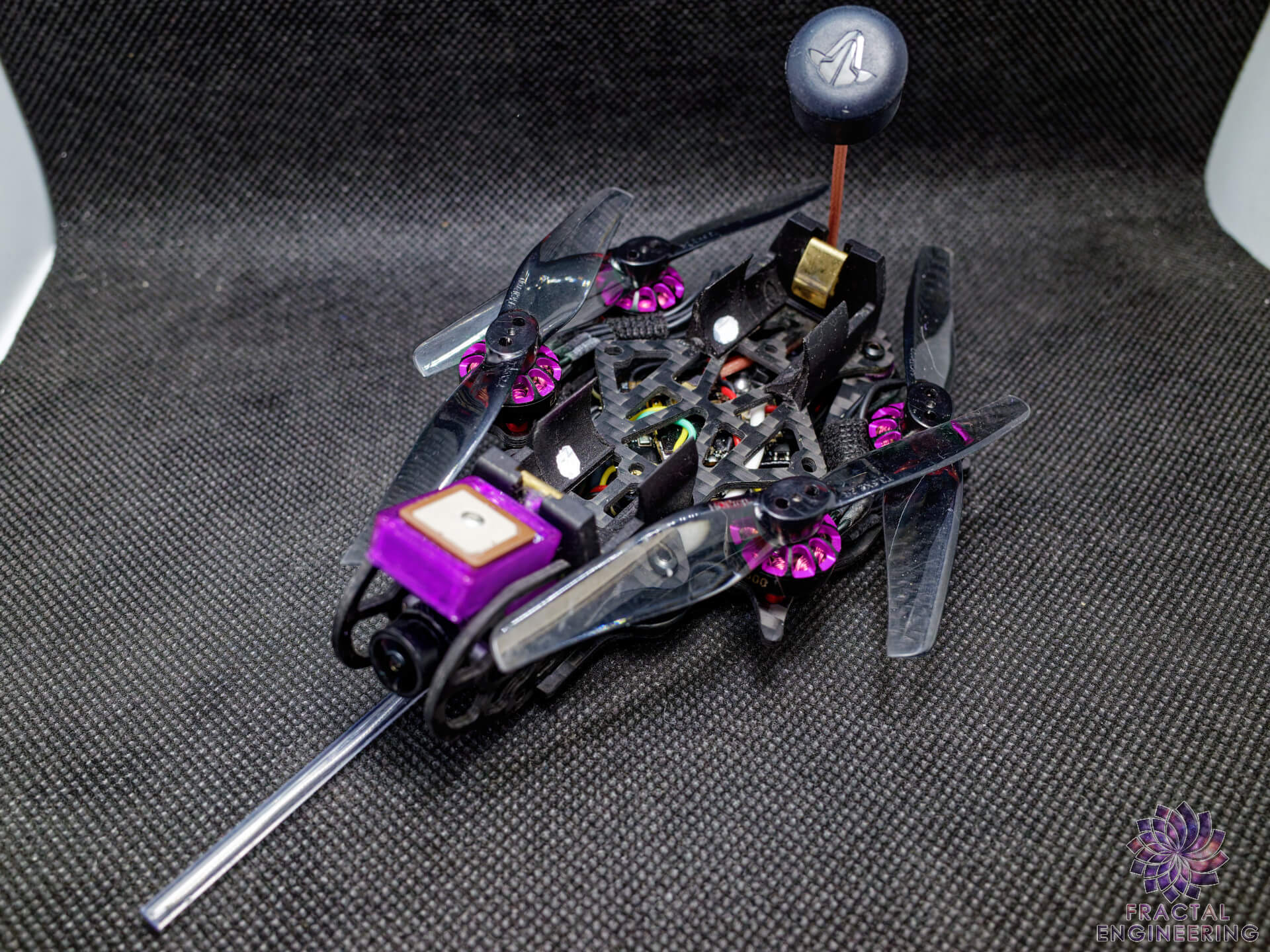

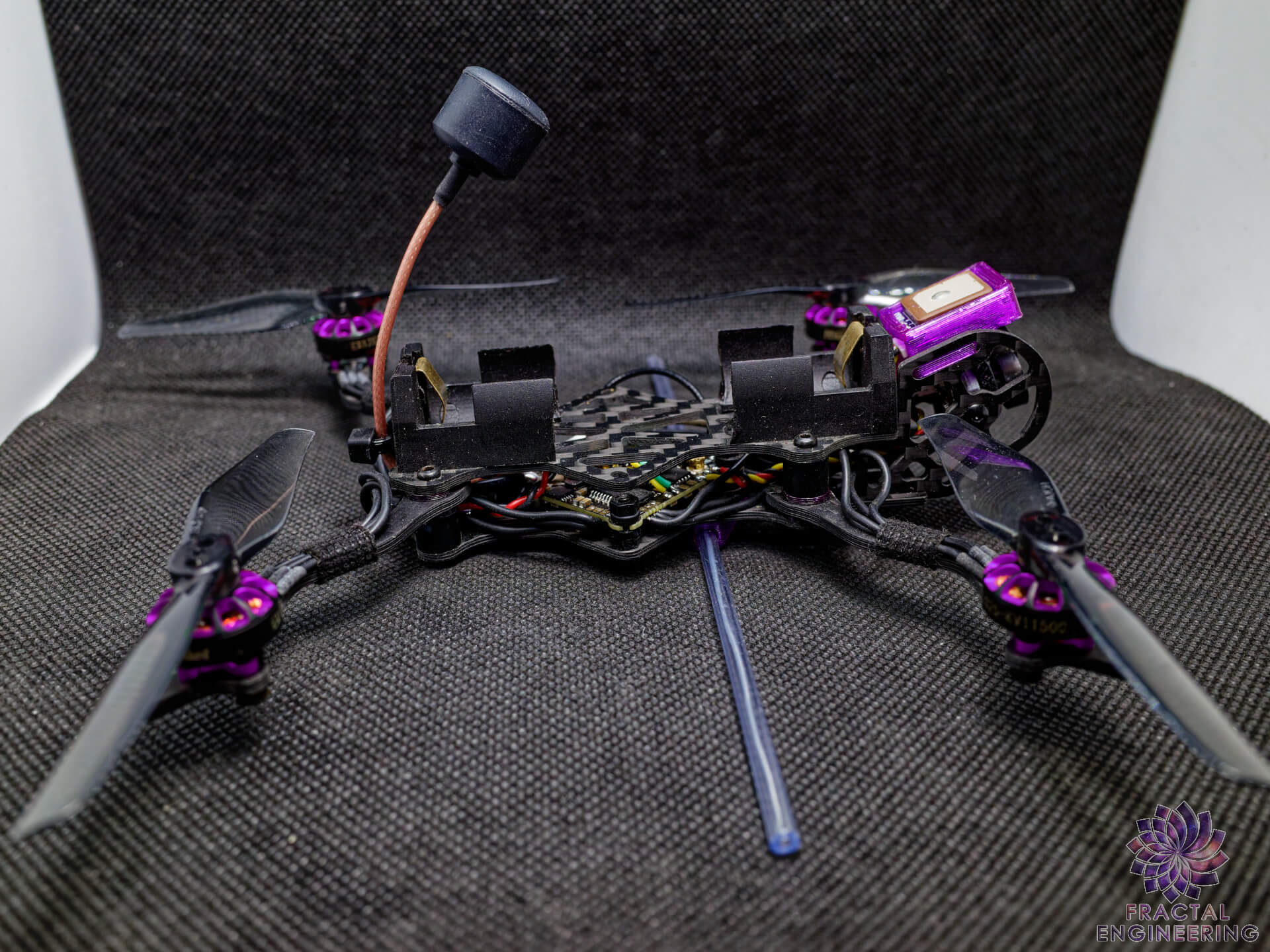

The major unique feature of this frame kit is obviously the folding arms

And the way it manages to achieve this feature in such an integrated manner is where the whole secret sauce resides

This 3″ 1S format offers the possibility to push incredibly intricate ideas down to an incredibly simple execution thanks to the low prop load

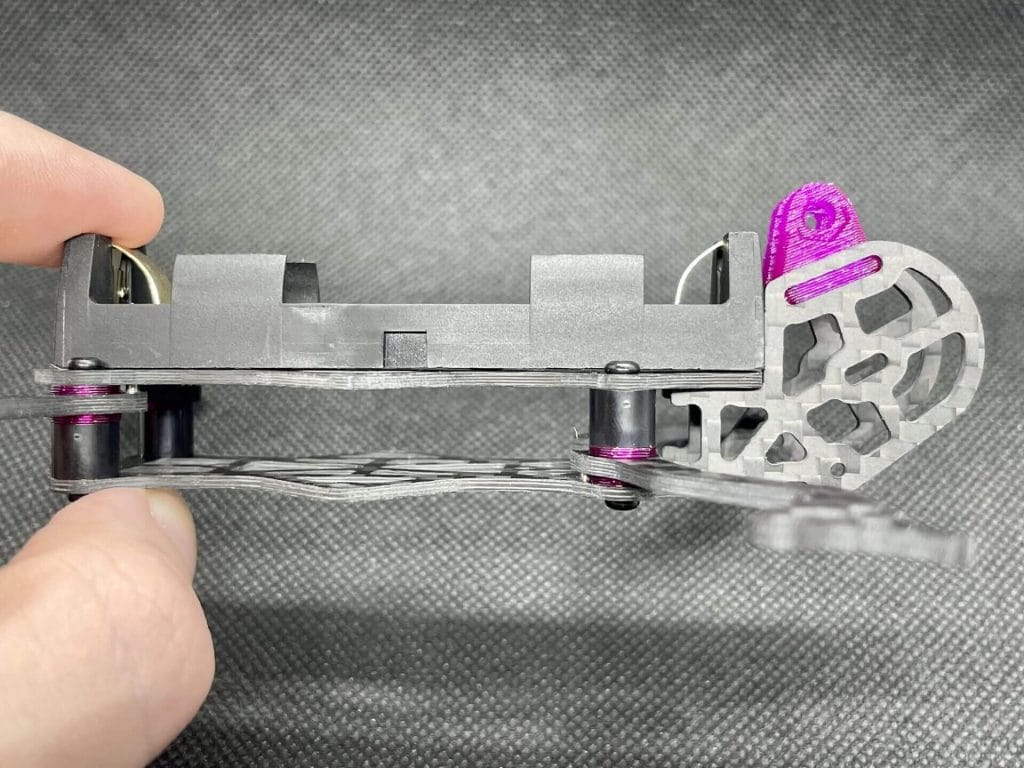

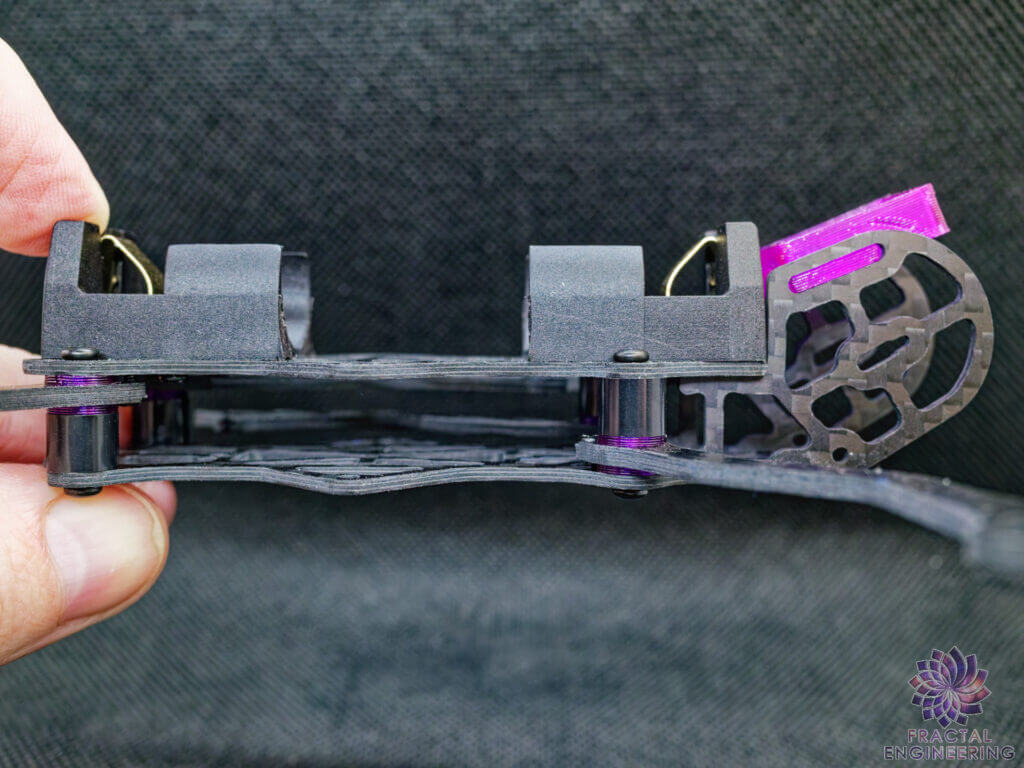

In this case, I’ve chosen to make the top and bottom plates clamped to the standoffs,

While using the same standoffs as pivots for the arms, themselves sandwiched between 2 TPU shims and a nylon spacer to press them down in position

Those TPU shims also serve 2 purposes at the same time; they primarily provide friction for the quick deployment of the arms, while also dampening the junctions

This helps reduce the number of vibrations transmitted to the FPV and HD camera (more on that in a bit) and the FC gyro, enabling smooth footage and easy tuning

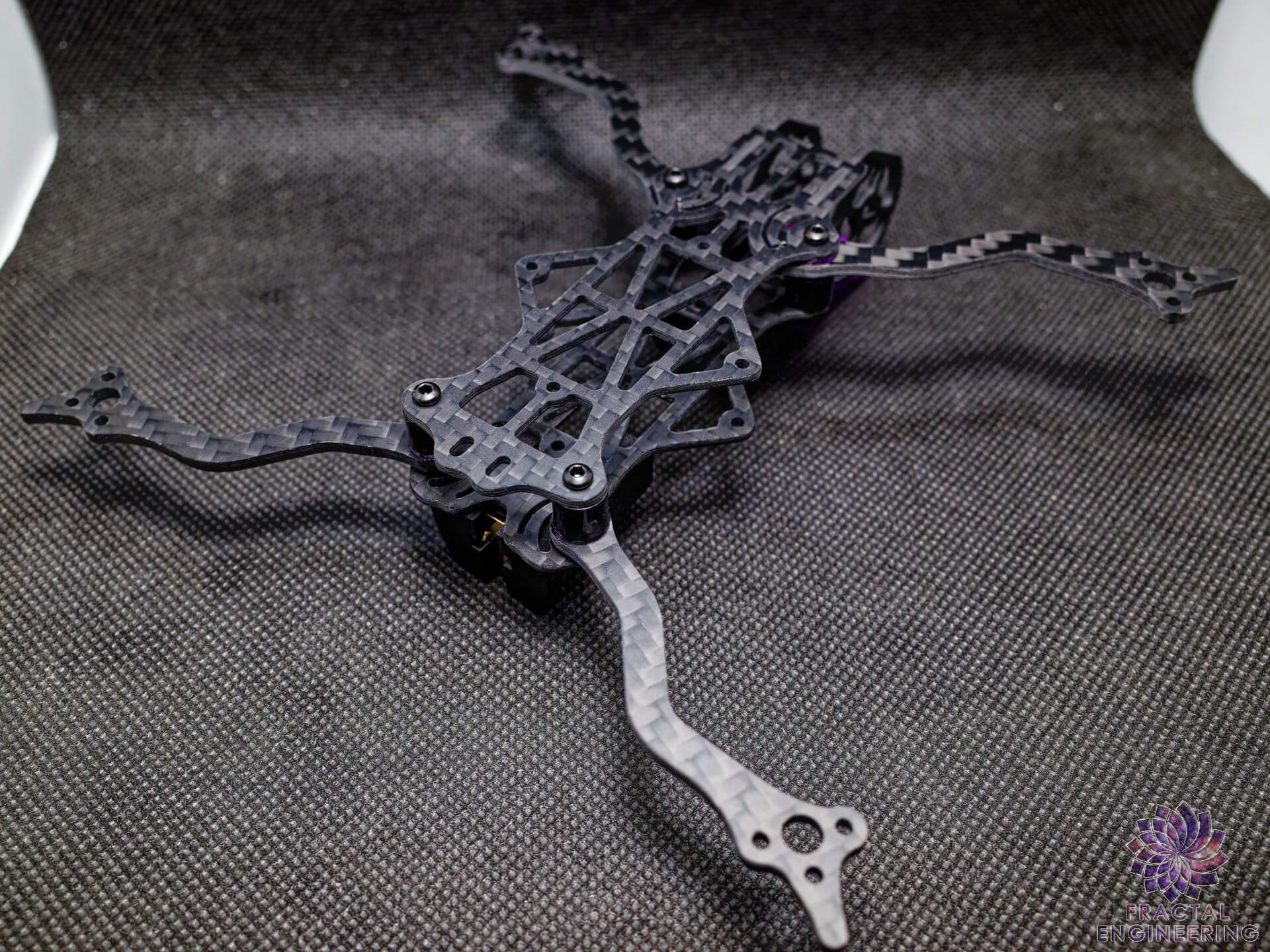

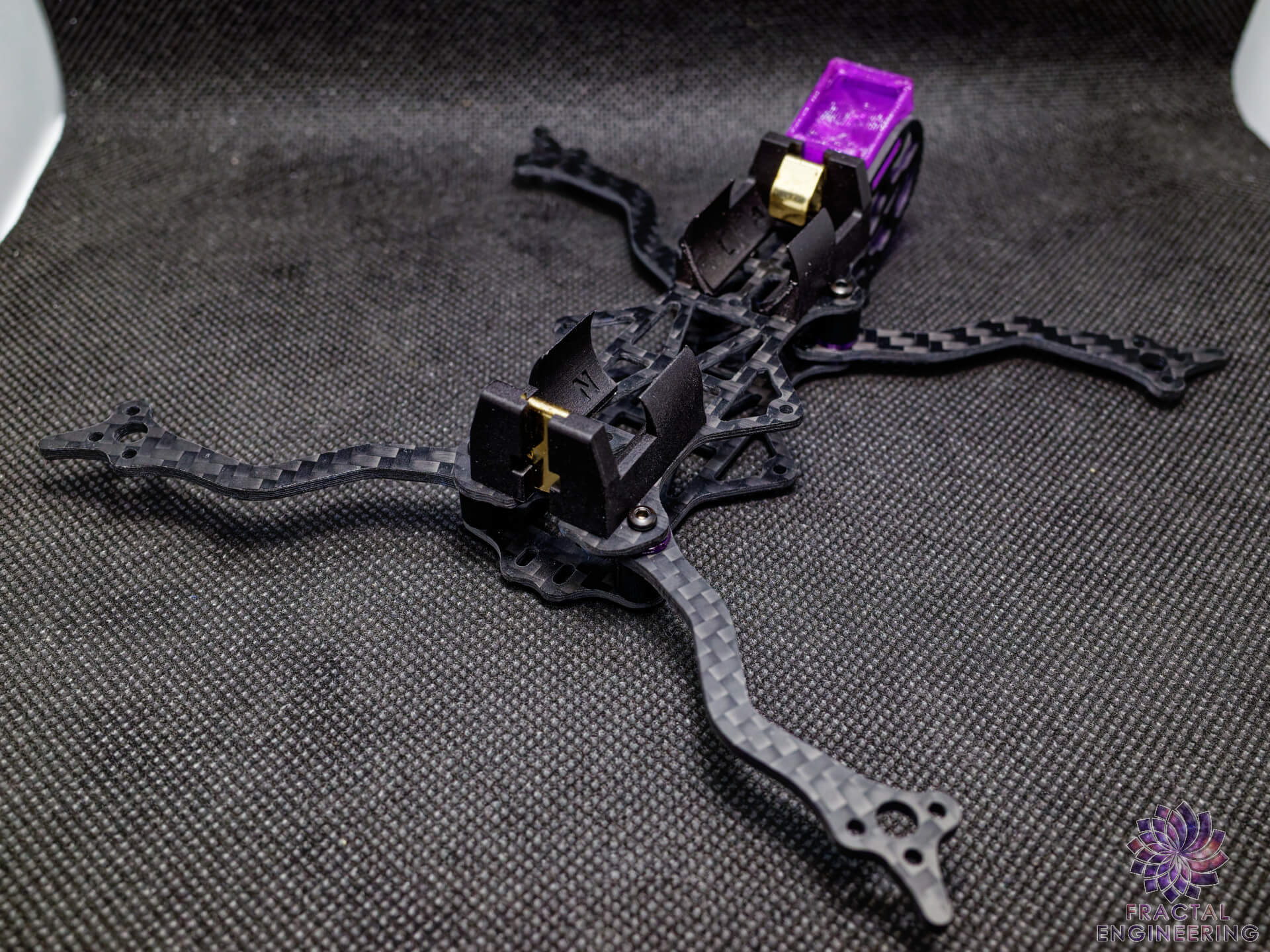

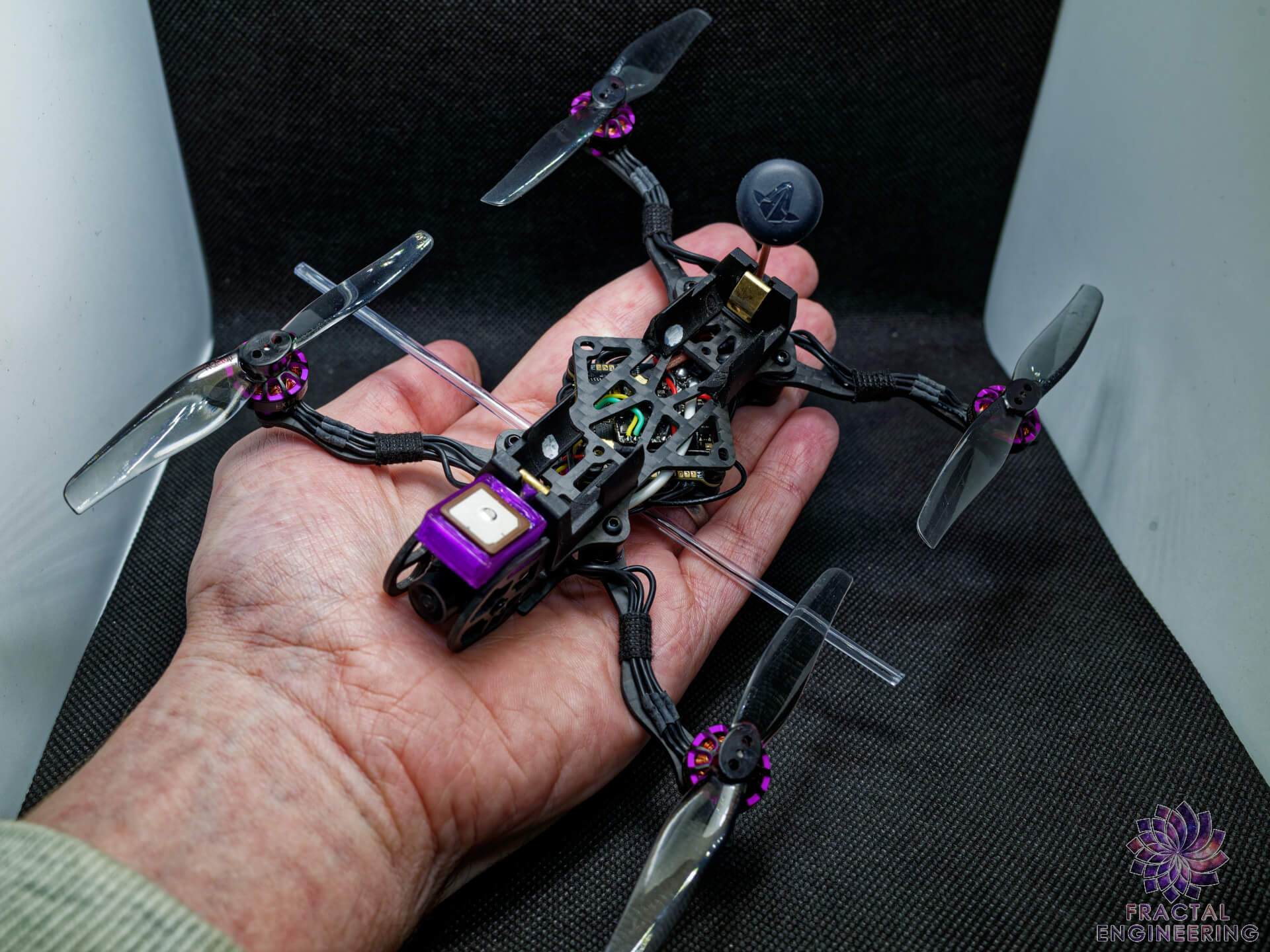

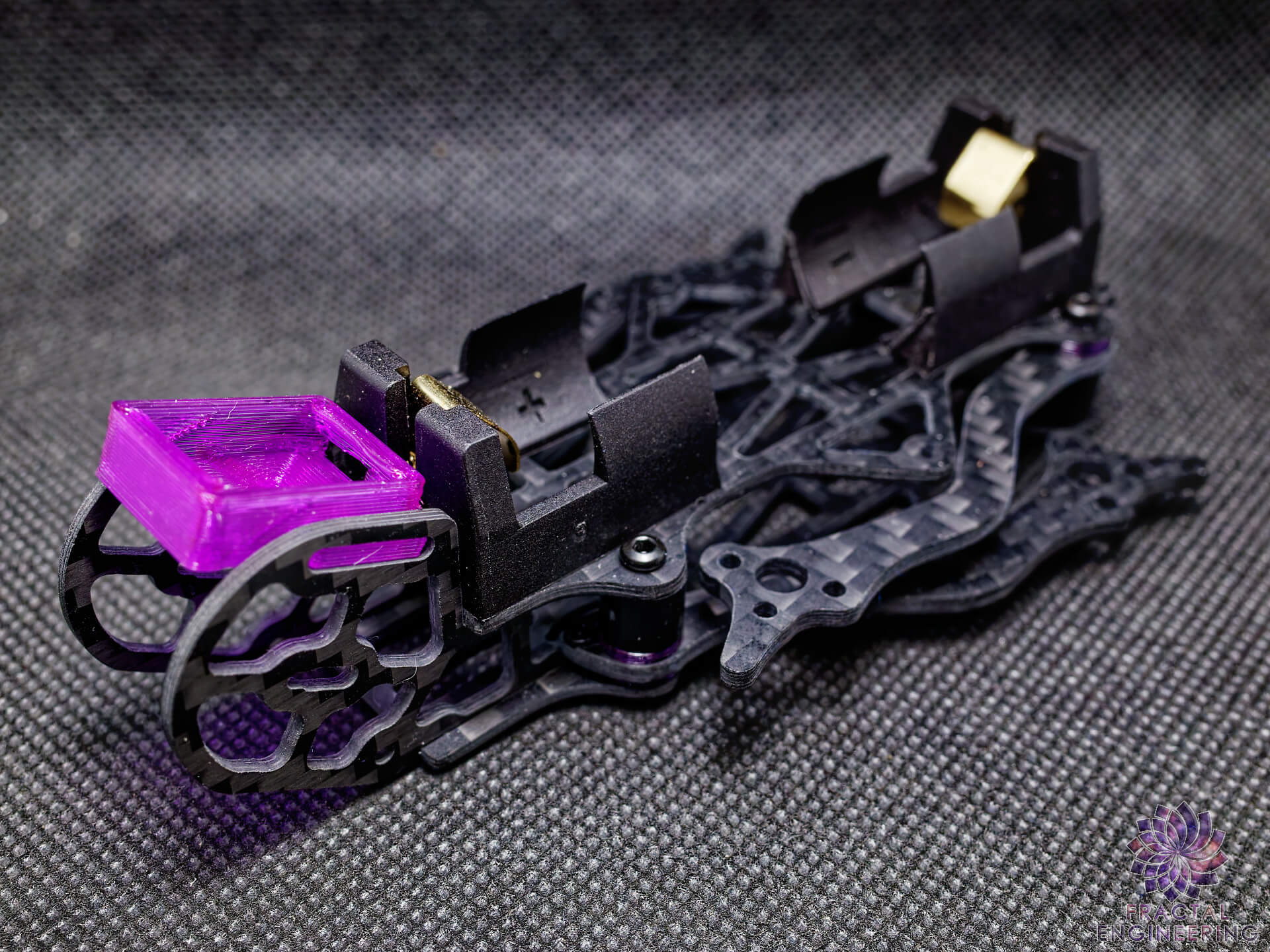

Ultra-lightweight, durable and compact design

The spaceframe carbon fiber body was meticulously designed to only keep material where absolutely necessary

This includes protecting all the electronics and maintaining a rigid platform,

While pocketing everything else for lightweight and airflow

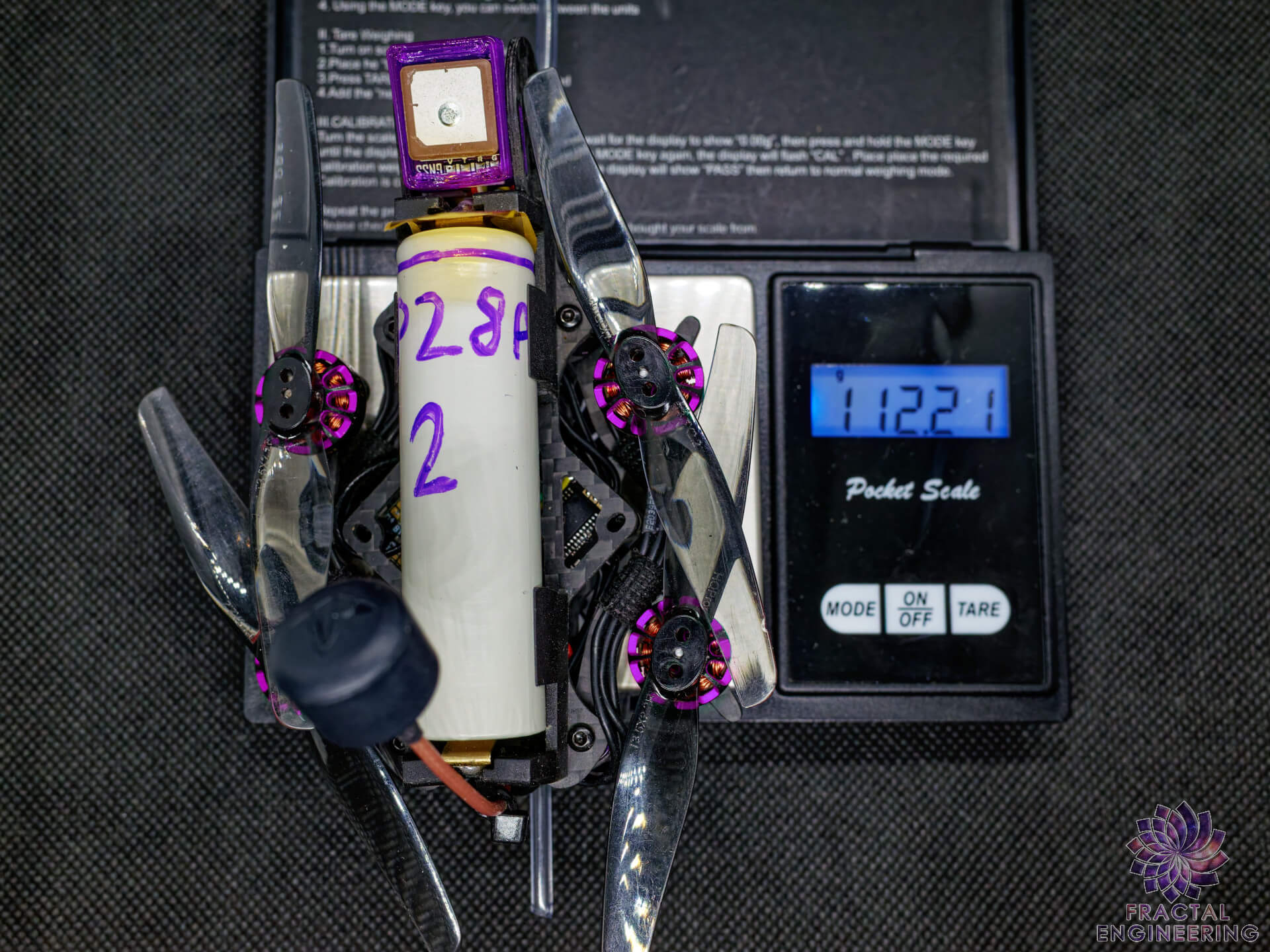

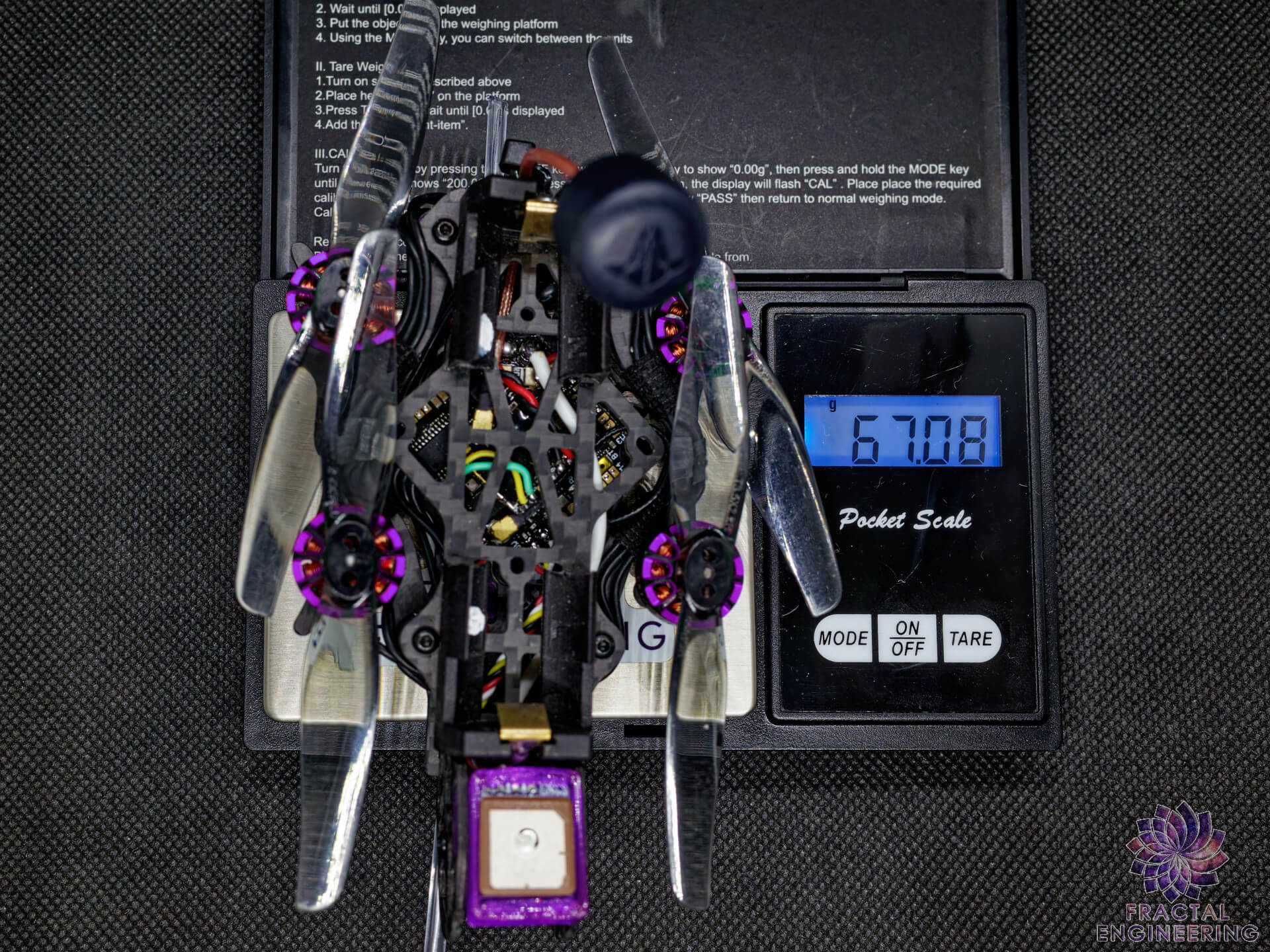

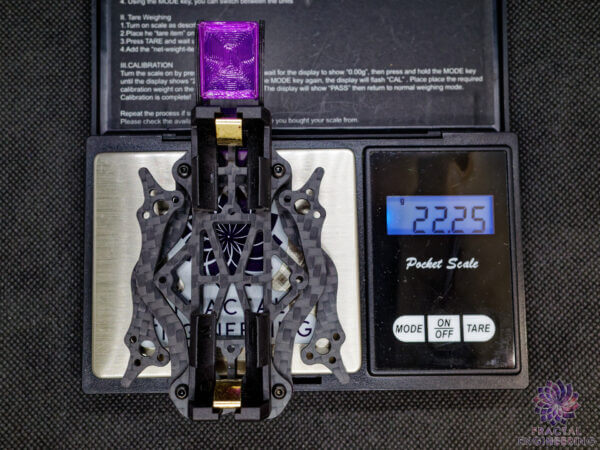

Making it only 24g frame only, or 60g ready to fly excl. battery

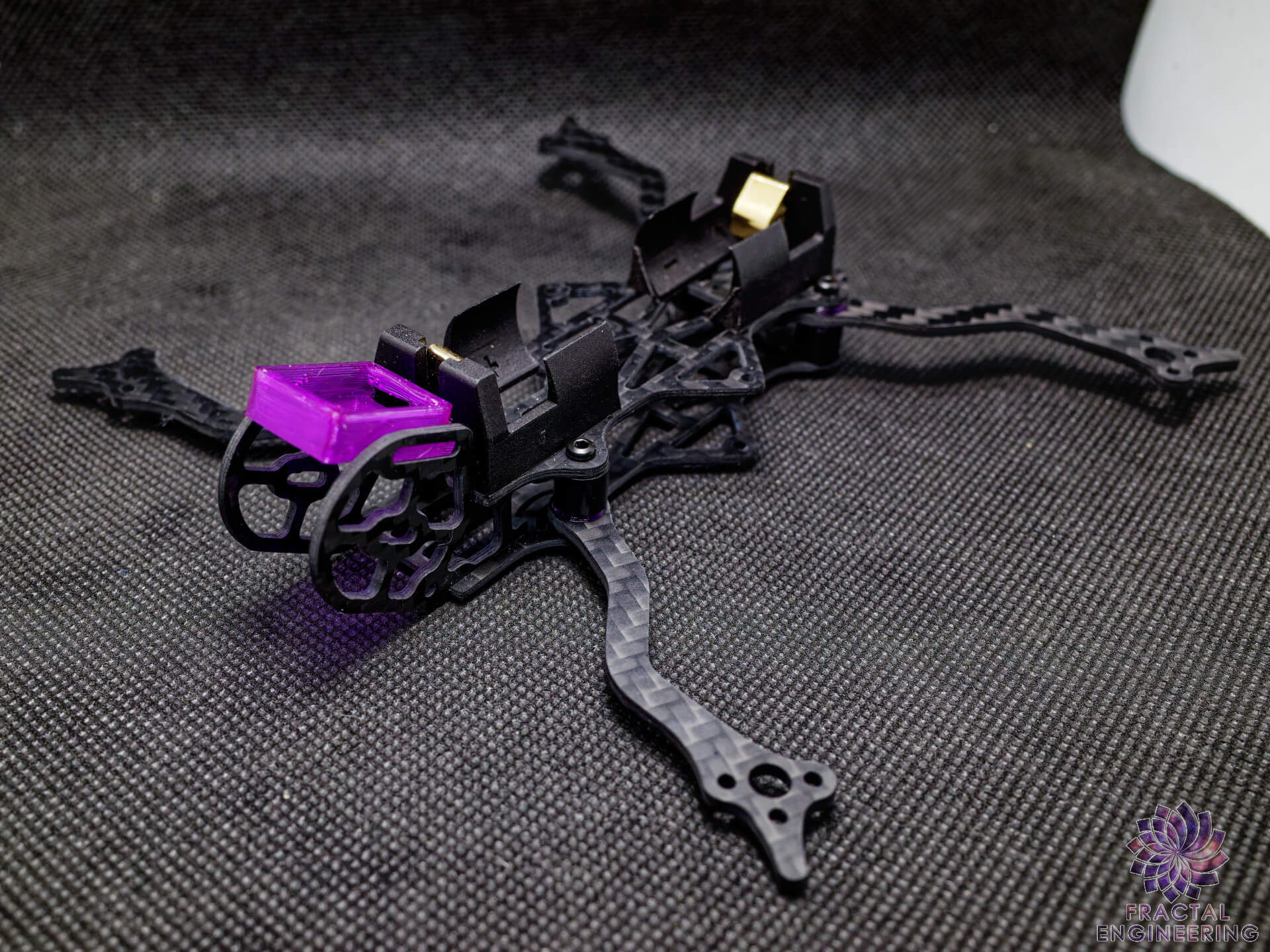

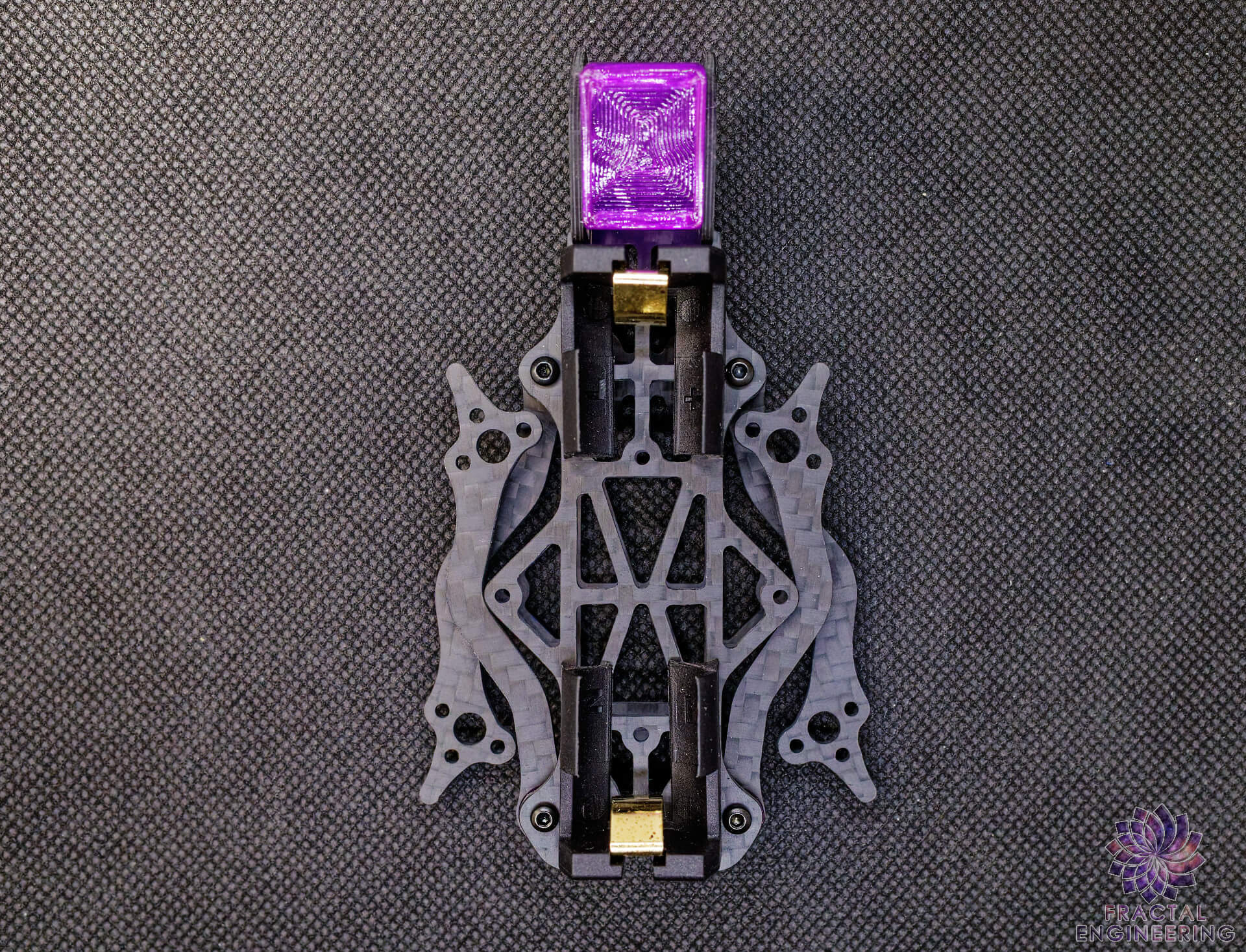

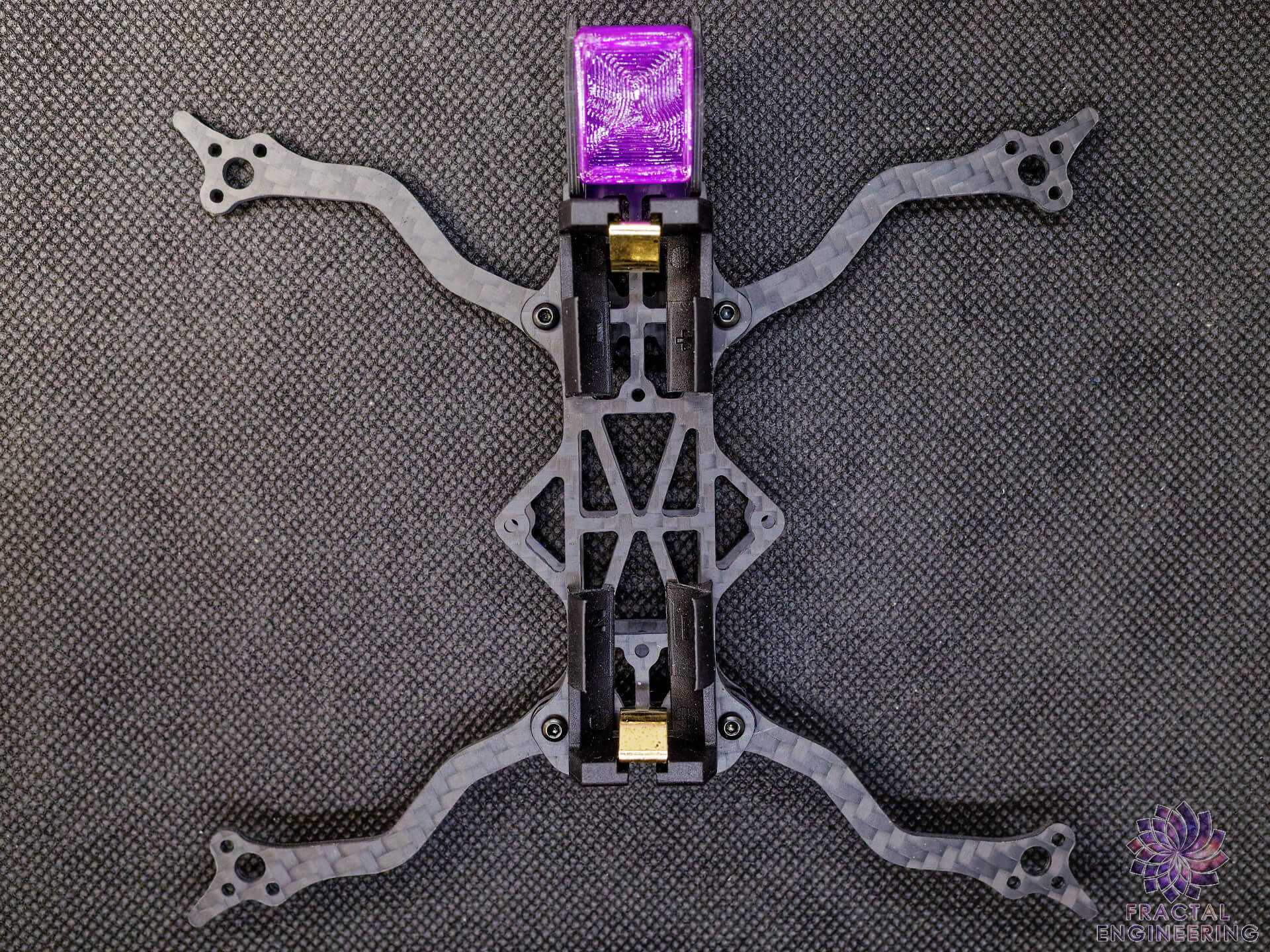

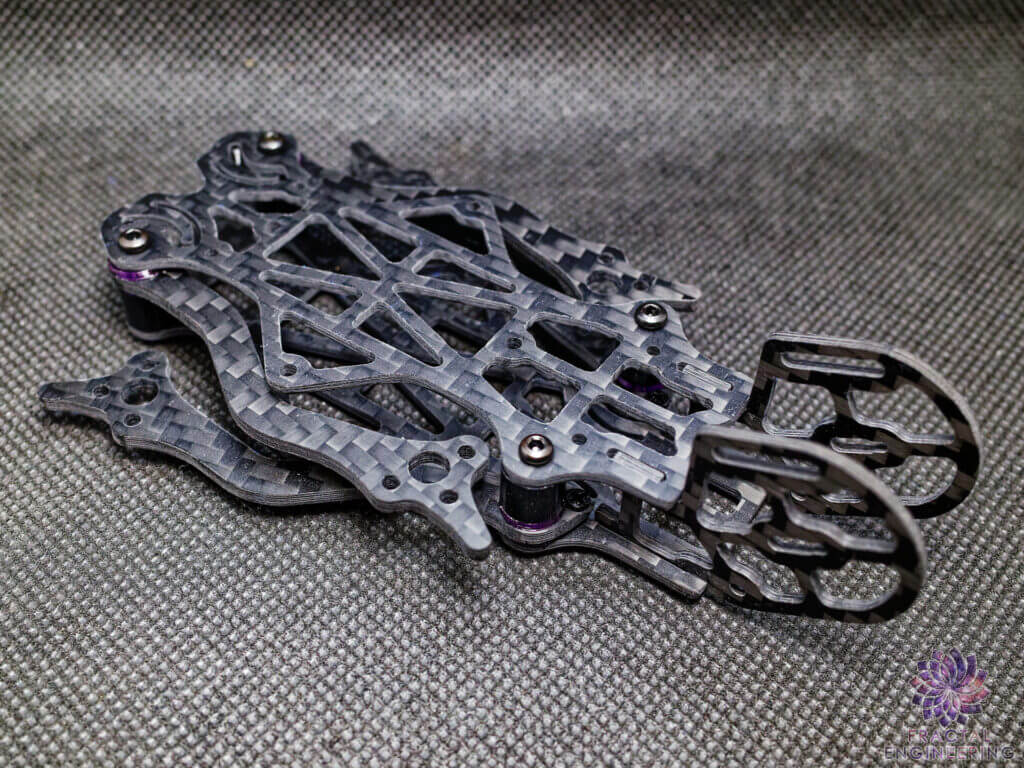

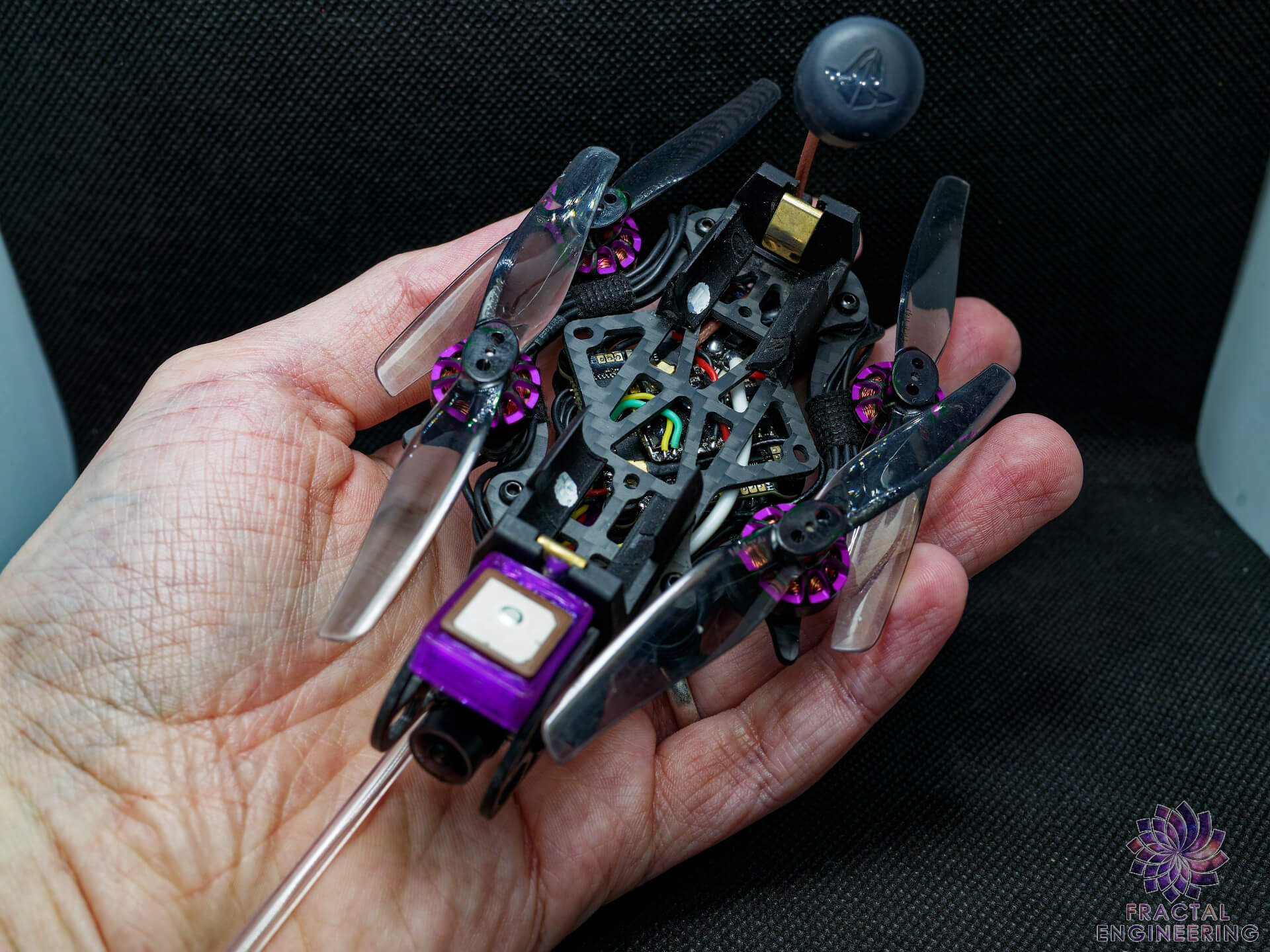

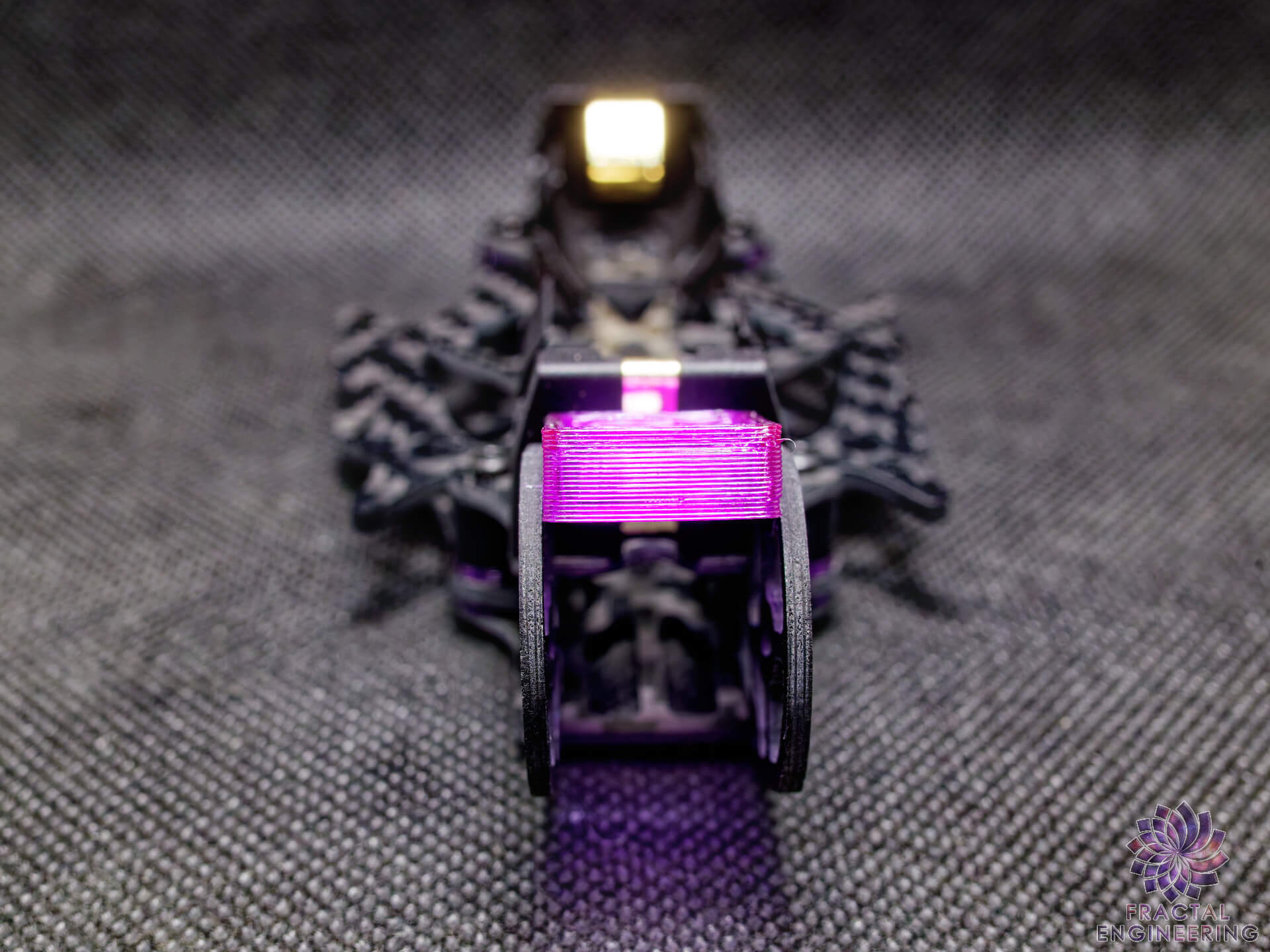

Quick-release arm mechanism

For being designed around ease of use and quick deployment, I went for a friction fit with a light detent to hold the arms open

Just simply pull the arms out until the detent clicks, and push them back in when you’re done

That means no manual latch, no thumbscrew, no positive lock

This also means that in the event of a crash the arms might fold and you would need to go get it…

…But you’re also more likely to be able to take off again without any damage, as I’ve found during testing that the folding appears to absorb a lot of energy that might have snapped something otherwise

In any event, let that be clear that this remains a stable and soft cruiser above all; you won’t have much fun going bando bashing with it I can almost guarantee it 😄

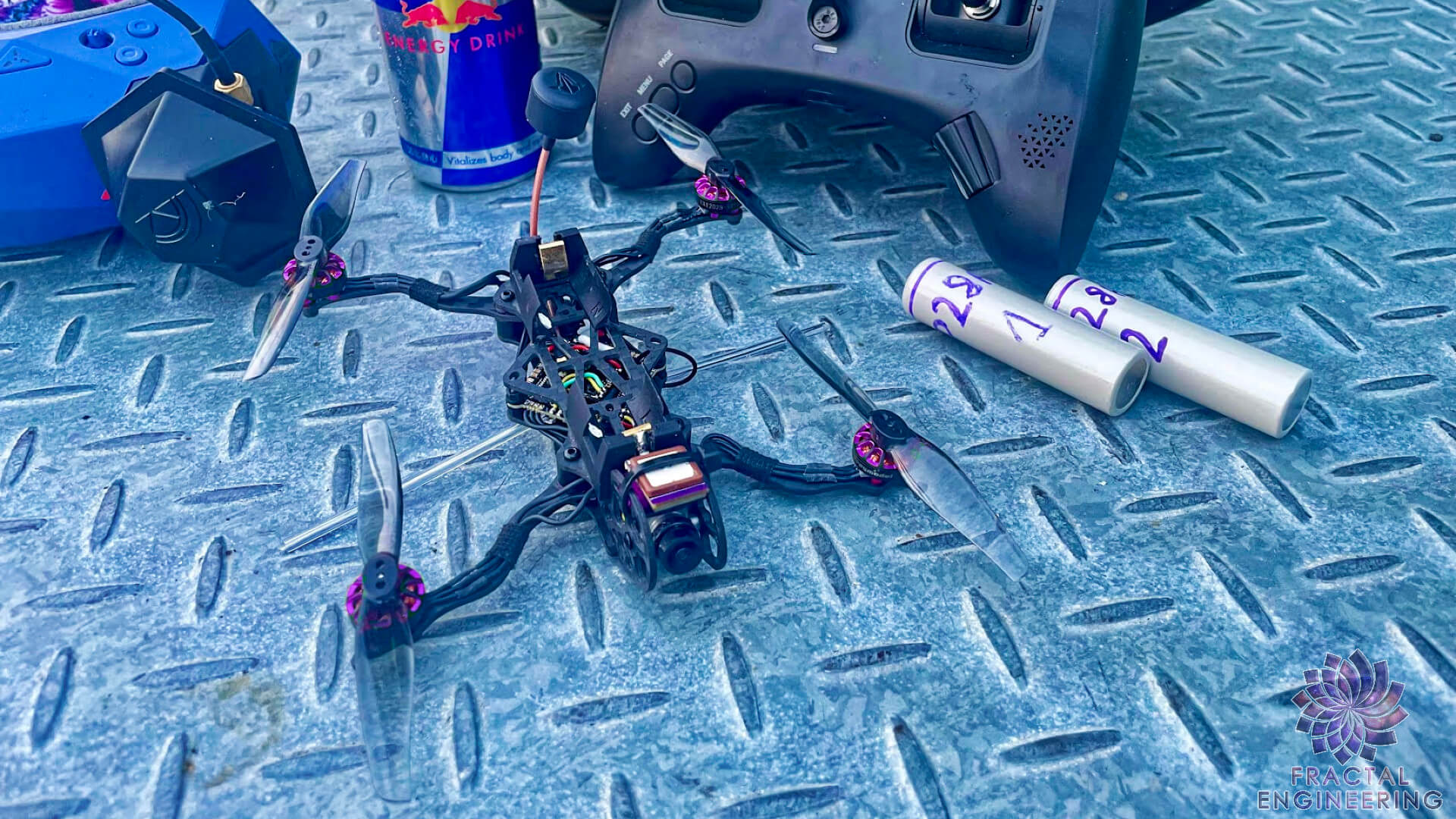

Extremely efficient and long flight time – Over 20mins

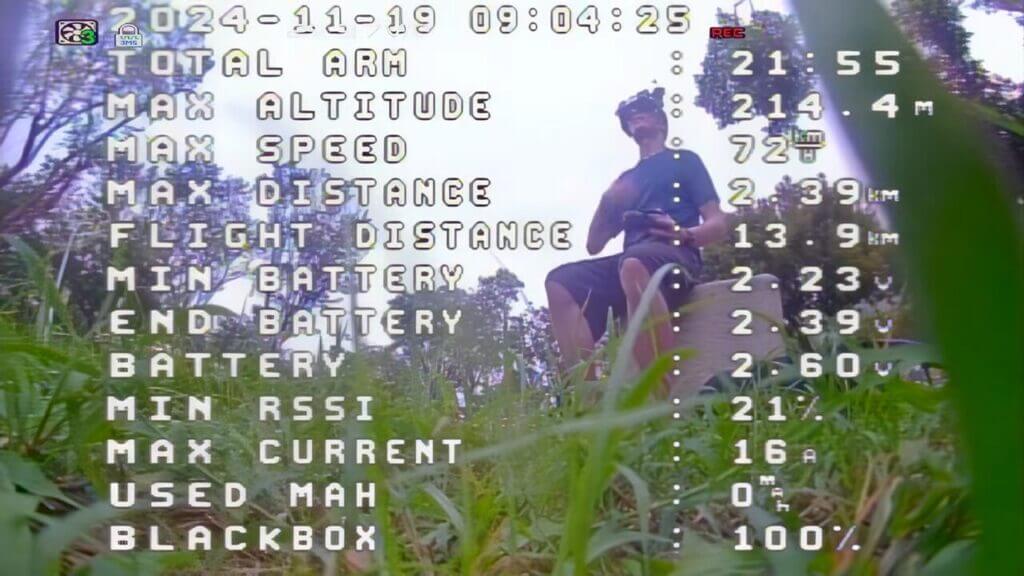

The DVR to the right speaks for itself;

I was able to get over 20mins of decent acro flight time on a poorly tuned build with a mere VTC5A 2600mAh cell

I reckon this is not even near what this platform can achieve with a 3000mAh VTC6 and proper tune

How long can you fly?

HD Cam capable

The camera mount that comes with each kit isn’t just for shows, it can definitely carry it 😄

Well maybe not your full-size gopro, but if you have a caddx peanut, insta360 go, or a thumb you’ll get a lot of fun from it

I bring mine on short trips, takes no space in the bag, is quickly deployed, just a great little compact video rig

Now HDZero/Walksnail Capable!

The first batch of ~100 Wingmans was designed before lightweight HD FPV options became available

With this new batch I’ve implemented many small revisions, from cooling improvement to weight savings passing by M1.4 cam mounts for the Nano Lite camera and improved general tolerances

This makes it a fantastic frame for HD FPV cruising, exploring and rediscovering the world with this new improved resolution

As such I’ve also created a 12mm stack height option giving more room to comfortably build a double stacked boards build

— not mandatory however for advanced builders

To sum it up

just a great tool to always have with you, just so many uses for it

  • Toss it in your bag when you’re going on vacation for drone videos (also a great excuse for your wife to bring a quad)
  • Use it to recon new spots to rip without going out of the car (walking? like with your legs?)
  • Search and rescue! Take advantage of the long flight time to look for a lost quad (I hope you find it brother/sister)
  • Attach a string to the back, fly around that branch you got your main quad stuck on, bring it back and give it a good tug (watch your head)
  • Or even get that whoop you got stuck on that roof (I know you could just climb up the gutter but come on it’s 2022)
  • Guerilla dive! pull it out of pocket, deploy it in a second, rip that huge building tower (you know which one), fold it back in your pocket and bail
  • Or simply just cruise around for a relaxing chill flight, perhaps to wind down after a hard charger sesh (if you got the patience for it)
  • … or whatever else you want it to be!

I’ve built this frame not to be an alarmingly fast zippy freestyle rocket, or a purpose-built cinema rig to carry your gopro

I’ve built it to be always there when all your other quads are down,

Always there to have your back when you need it

Hence why I’ve named it so.

I’ve built it to be your Wingman.

I hope I got you as excited as I am about this new creation and I hope you get all the fun and use from it as I’ve been having!

Get yours today, tell me about it!

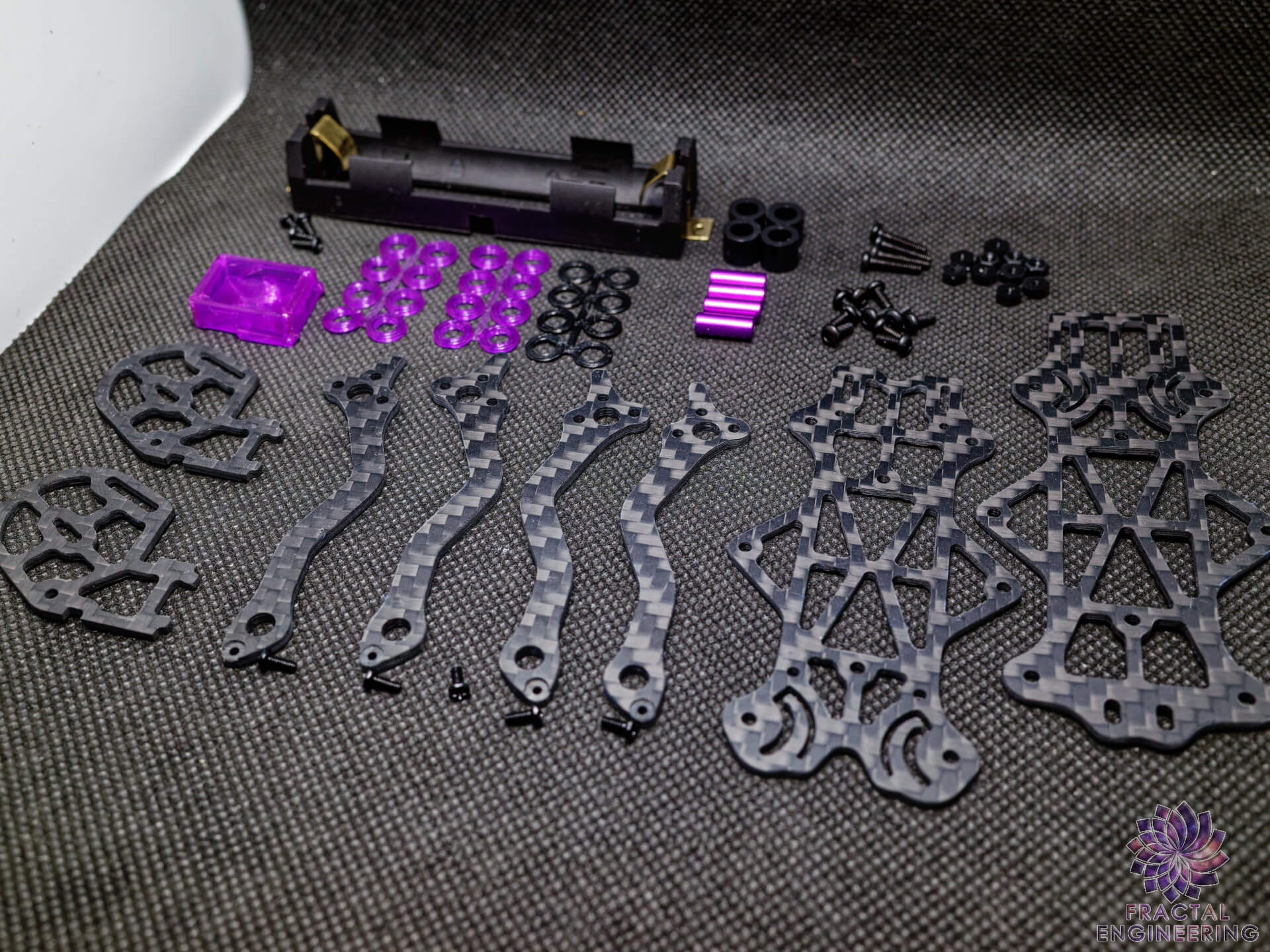

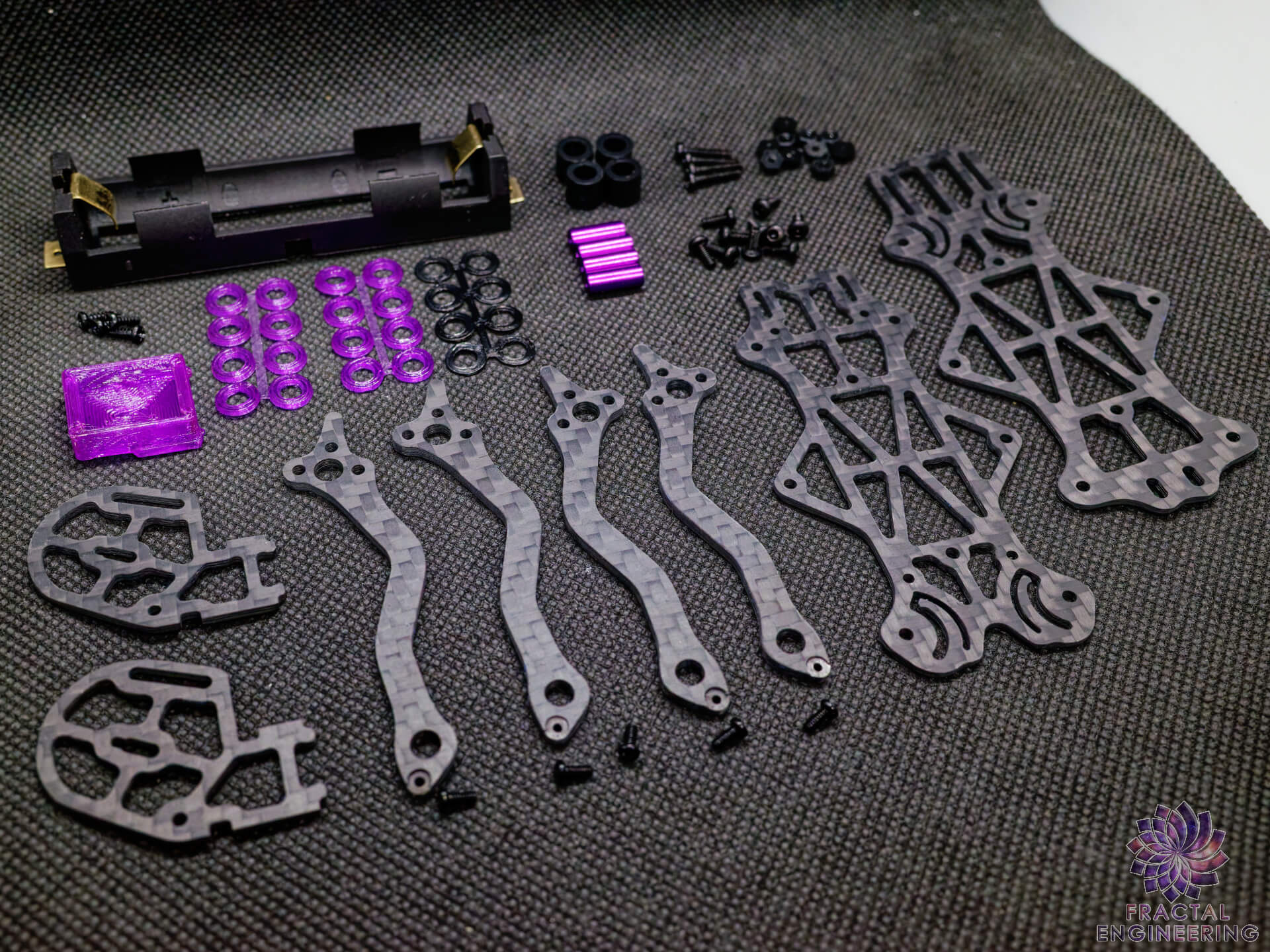

Contents

  • 1 x Top plate
  • 1x Bottom plate
  • 2x Front plates
  • 4x Arms
  • 1x 18650 Tray
  • 4x M2 x 10mm alu standoffs
  • 4x M4 x 6mm nylon spacer
  • 10x M2 x 5mm steel screw (for the standoffs)
  • 4x M1.7 x 5mm steel self-threading screw (for the 18650 Tray)
  • 1x TPU cam holder
  • 2x TPU shim set
  • 4x M2 x 10mm steel screw (for the stack)
  • 10x M2 nylon nuts (for the stack)
  • 10x M2 x 4mm socket screws (for the motors)

Build recommendation

Motors: 1202.5 11500kv or equivalent, 80mm long wires. See the custom happymodel ones we made in collab with Tiny Whoop here!

Props: 3018 biblades or equivalent. See the Gemfans I’m carrying

AIO: Any 5A 1S will do, I’ve had great luck with Happymodel ELRS F4

Camera: Any 14mm micro cam. See the special Caddx Ant I’m carrying with extra long wires

VTX:

  • Analog: I like them built-in the AIO, but if you prefer it discrete I recommend powering it through a voltage booster circuit
  • HD FPV: Use the optional HD Grommets for a compact stack, voltage booster module is strongly recommended as most VTX brownouts below 2.8V, which happens rather quickly on a 18650
    Also make sure to get 60-80mm mipi cable

Link to the manual page

Notes:

1-Only the frame kit is included. Full build pictures for reference only.
2-Due to continually ongoing development, the actual product you receive may differ from the pictures/description.

Video Reviews

Additional information

Carbon Fiber

Wingman 1S CF Set

Screw Kit

Wingman Screw Kit

TPU

Wingman washers and cam mount

8 reviews for Fractal Wingman – Frame Kit

  1. Sean “BogwitcH” Shitstorm

    Just finished my Wingman build. This kit rulez! This was my very first scratch build and also my get good at soldering build. I watched Yves hdzero build video at least ten times just to watch him solder. I hope i can get that good!

    Maiden flight was today, 15:35 starting on a 4.01v charge molicel p28a with bt2.0 pigtail. At the end of the flight as it dropped from the air at a recorded low voltage of 3.06v!

    I’m so pumped on this little friend and have many awesome adventures planned for it!

    Thanks Fractal Engineering!!!

    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Helpful? 1 0
  2. Brandon Scott (verified owner)

    Freaking Fracking Awesome!!!

    This will be a life long friendship with my Wingman! I can take it anywhere and cruise for days!

    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Helpful? 1 0
  3. DaPeachFPV

    As efficient in digital as in analog!

    The analog build is easy as pie, a bit of a heavy flyer when bearing a Caddx Peanut but okay for a cinematic line. Without the Peanut load (so 58g dry) the promise is met: 18 minutes of flight time (down to 3.0v).

    To come arround this short coming (difficult flight with the peanut) I decided to make a WS build. I wanted a true nano-longrange so I added a GPS and an autonomous buzzer. It brought the build to 70g dry, 117g with a 18650, so 12g more than the analog version but with built-in HD recording (no frame and no props in view), GPS and buzzer 😎

    With the help of the Boostyboi to power the VTx I was able to fly 13 minutes when landing at a conservative 3.0v and 18 minutes (yes, eighteen minutes!) when landing (well, droping from the sky) at 2.3v!

    Did I mention that it folds and you can bring it everywhere you go? I love it, thanks Yves for this amazing design 🤩

    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Fractal Wingman - Frame Kit
    Helpful? 2 0
  4. Dennis Navle (verified owner)

    Wow! Even better than I expected!

    Yves was hugely helpful in answering many of my concerns and questions. I finally took the plunge and bought the wingman frame. I had a Crux3 ELRS that I wasn’t flying anymore so I salvaged all the parts from that, extended the motor and camera wires, soldered everything into place (with some helpful guidance from his 3 hour long youtube video build), and just took it for it’s maiden flight today!

    This is exactly what is promised, a compact, lightweight, folding, single cell quad. With my ultralight setup (think: ceramic antenna and dipole VTX atenna) and gentle flying, I got ALMOST 24 minutes of flight time. Thats INSANE. It was actually TOO much for the limited range of my crappy video signal. But with that kind of flight time, it would be easy to add weight and increase it’s range capabilities and still get 15 min in the air.

    The only thing I would add is that it will often take more throttle input that your’e probably used to – I smacked the ground a couple of times trying to fly like my normal LiPo quads. With practice I figured out how to better control it. I certainly wouldn’t want to try to fight the wind on a long flight on the wrong day. This isn’t a criticism of the product, more like a resetting of expectations for a 1s Li ion quad. I’ve got other quads for flippy floppies, this is unique, simple, and would be a great way to pack something small on a vacation. My fatshark and radio all use 18650 batteries. What an easy travel setup!

    This thing is everything I was hoping it was going to be! Thank you Yves!

    Helpful? 1 0
  5. Steve (verified owner)

    A design masterpiece.

    Once you have it in your hands you can tell how much thought, time, effort and love has gone into this design. Every aspect is well thought out both aesthetically and mechanically. The way the arms lock into place, the shape of the arms when folded in, carbon just where it’s needed and the unique look of the finished build, all contribute to a well done product.
    Congratulations Mr Fractal, it’s brilliant!

    Helpful? 1 0
  6. Aaron (verified owner)

    Great little drone, instructions need work

    Ordered this kit but only ordered one motor. before it shipped Yves thankfully reached out and double checked to see if that was right. A quick correction and everything was on its way. Took 2 weeks to arrive in Canada, not bad.

    When it got here I followed the we code on it to build it. This lead to a exploded diagram of how to assemble the body. This didn’t include any of the electronics though. I needed to modify the frame and do some guessing work to get it together but after a few hours it was all assembled and looking great.

    The tune provided in the download links turned out to be quicksilver. This is a really nice tune but I had to do a fair amount of work to get the motor directions right. Largest issue was the tune had the motors out of order and because the usb plug is under the battery it took a janky setup to get power to the board and still being plugged into usb. After getting everything setup correctly and the directions corrected the drone flys great. Using vt6 3000mah batteries I get around 16min of aggressive flying.

    Note, the kit doesn’t have the correct bolts for the props. They have been fine just friction fit but I will be putting in 2 bolts asap just incase.

    Helpful? 1 0
  7. Clay C (verified owner)

    clay.clapp@gmail.com

    an awesome frame, build wasn’t too hard. did have some trouble with the 18650 battery tray but besides that it’s not terribly difficult. flies okay enough, does feel like its sliding on ice with how heavy it is and with the bi-blade props. might try some tri blade 2.5″ and see how it turns out. 5 stars, great frame. only 1 gram heavier than the Rekon 3/nanolongrange frame.

    Helpful? 1 0
  8. Michael (verified owner)

    Looking forward to the build.

    Looking forward to this build. Still debating on what FC I want to go with.

    Helpful? 0 0
