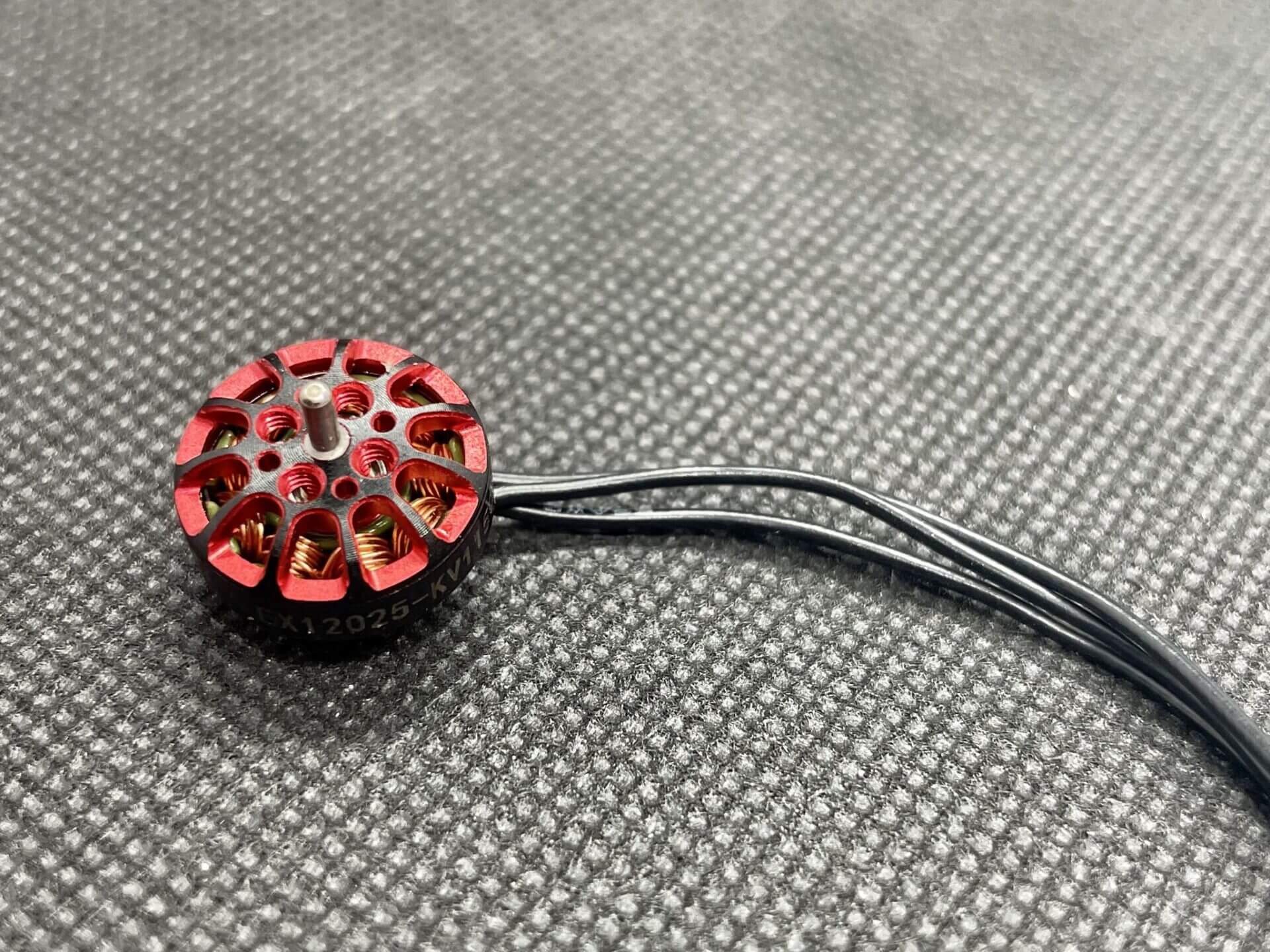

New Fractal Scout Motors – EX12025 12500KV

Description

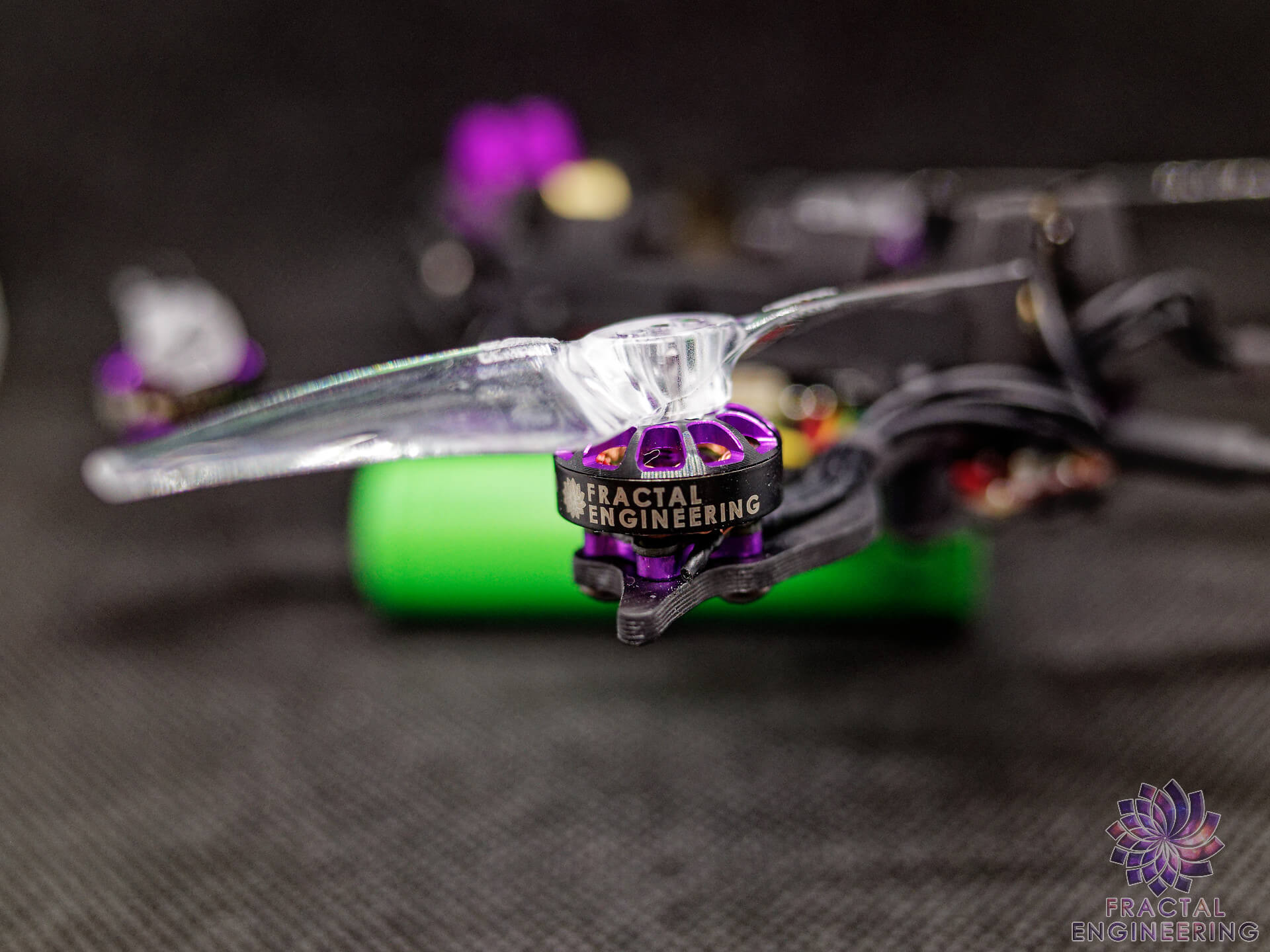

The best motor for 3″ 1S 18650 builds such as the Fractal Wingman!

Customized with extended wires to route around the pivot points and a PCB collector plate for easy maintenance

We’ve also slightly increased the KV to 12500, which should make the build more fun to fly along with the continued development of high-performance 18650 Li-ion batteries.

Features

• Lightweight and efficient
• Curved magnets, low airgap

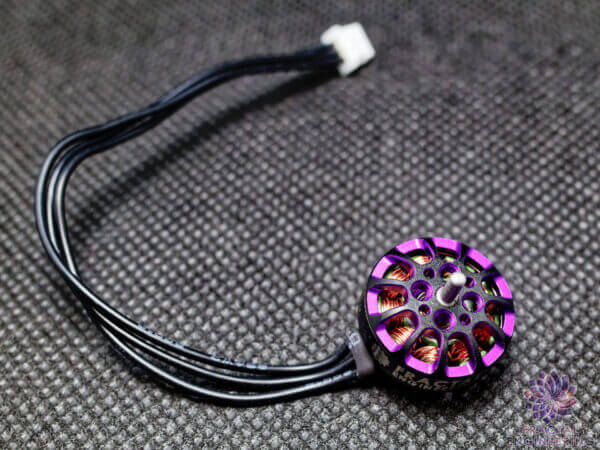

• Extra long 90mm wires for Wingman foldable arms build

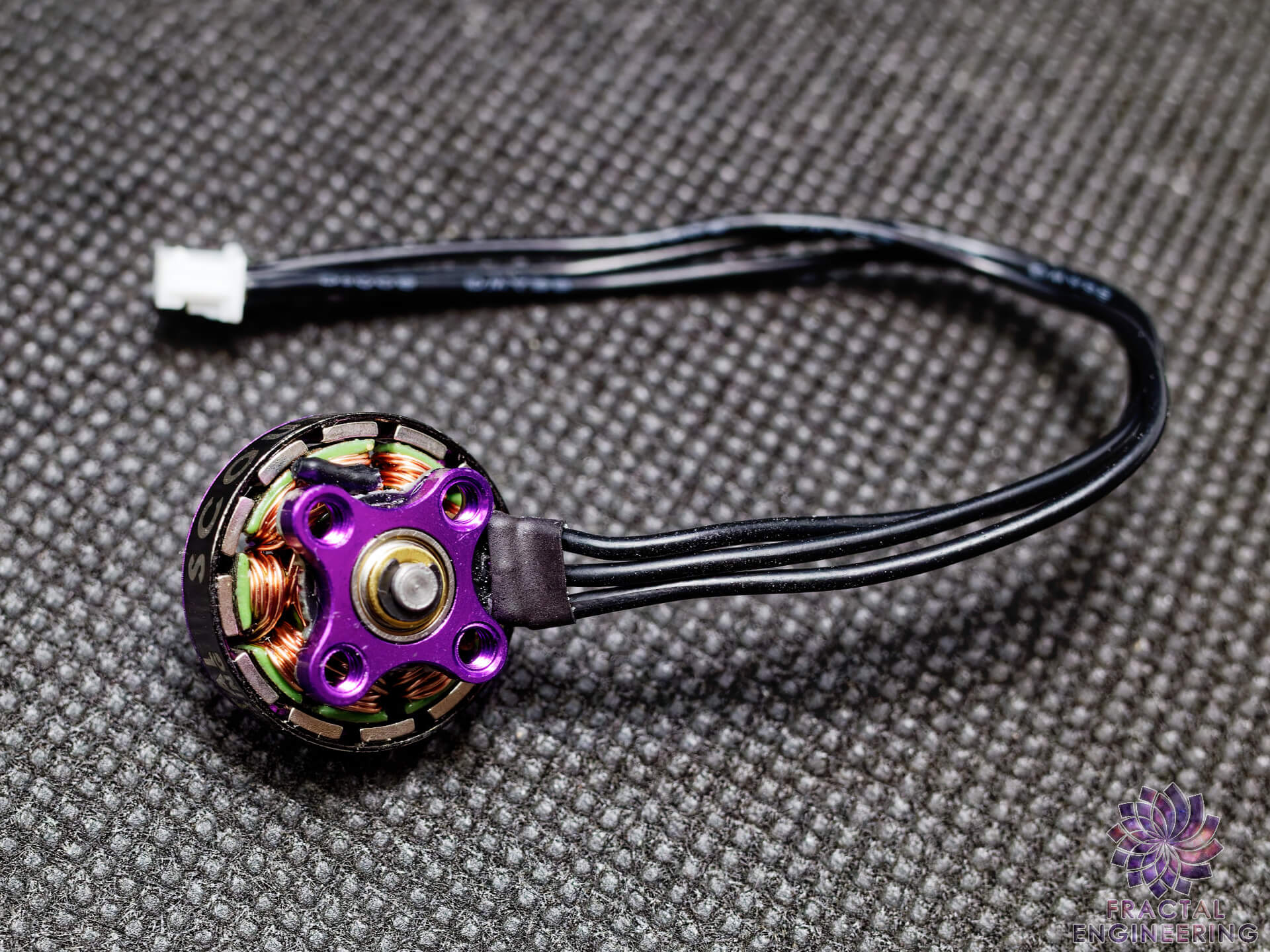

• PCB collector plate for easy maintenance

Specifications

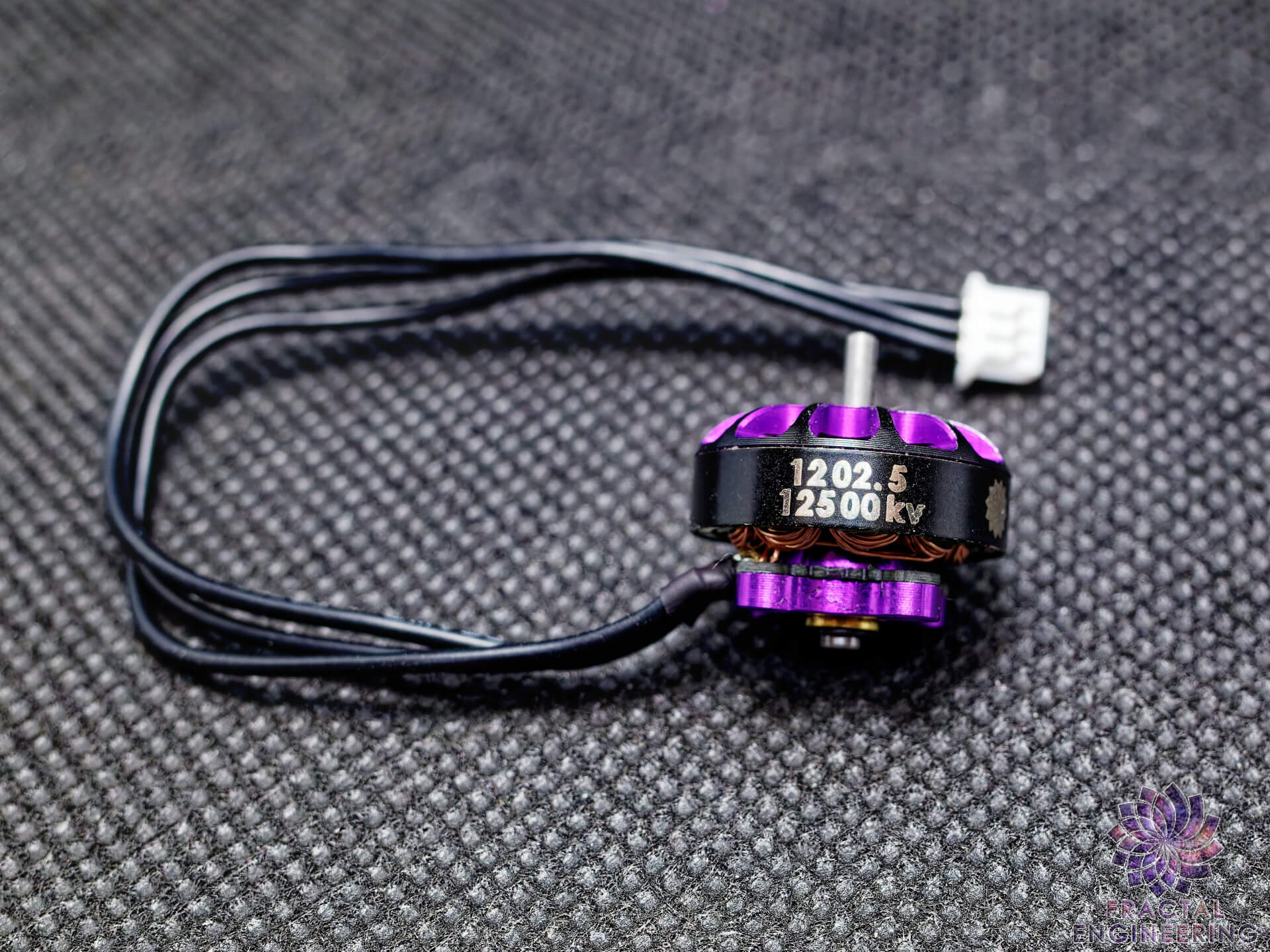

• KV12500
• 1S only

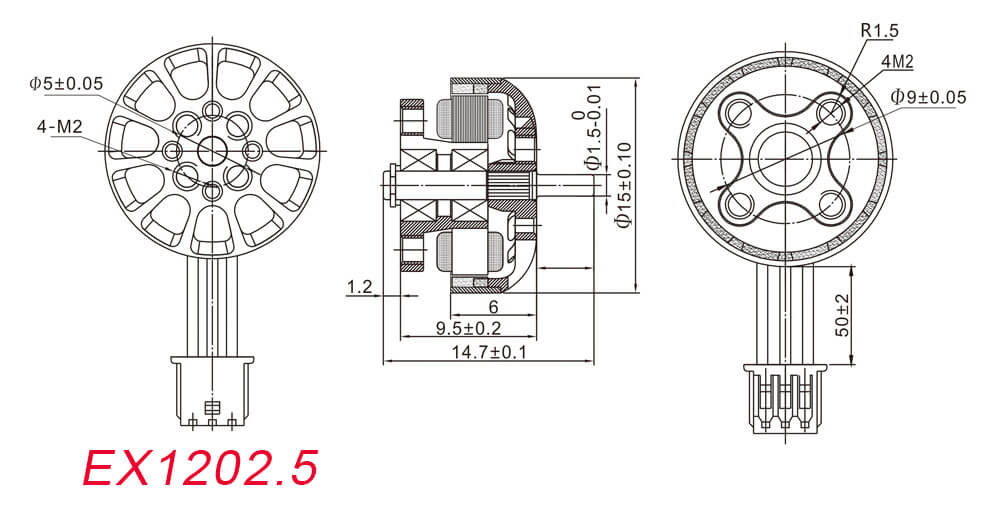

• Dimension(Dia.*Len):15mm*15mm
• Inner Shaft Diameter: 2mm
• Outer Shaft Diameter: 1.5mm
• Configuration: 9N12P
• Weight(g): 4.63g

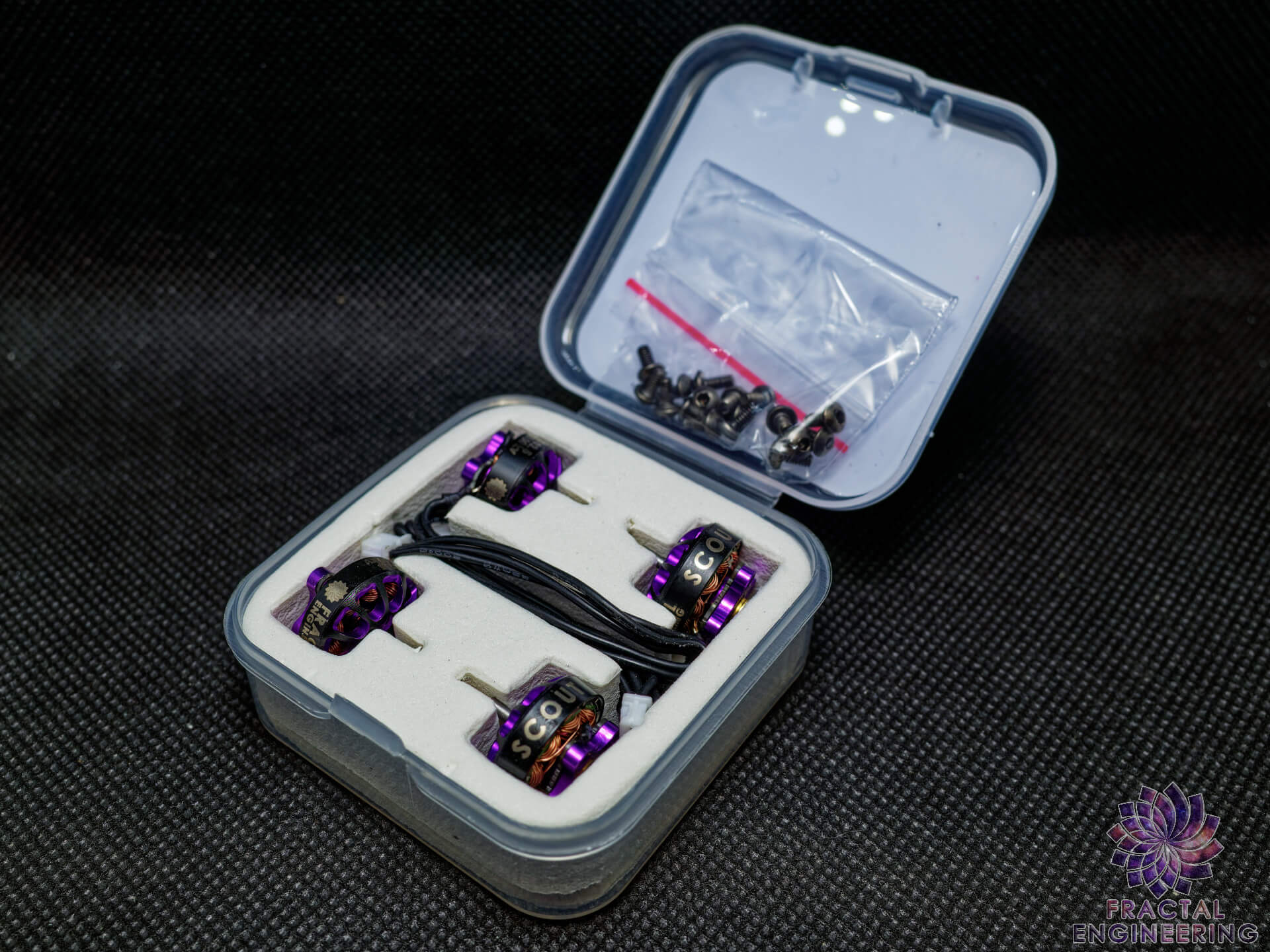

Includes

• 1 x Happymodel EX1202.5 Motor
• 5x M2x4mm Screw
