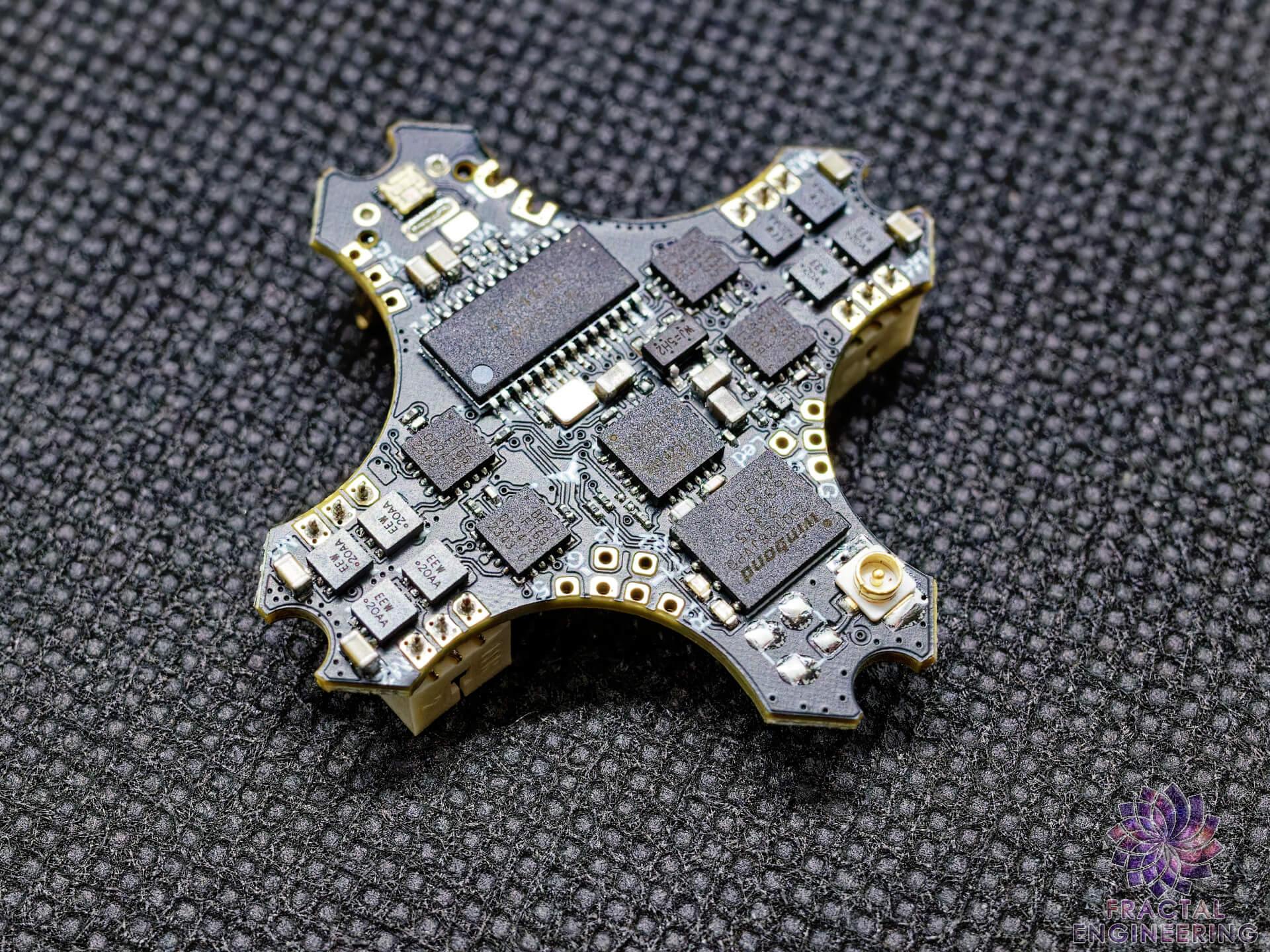

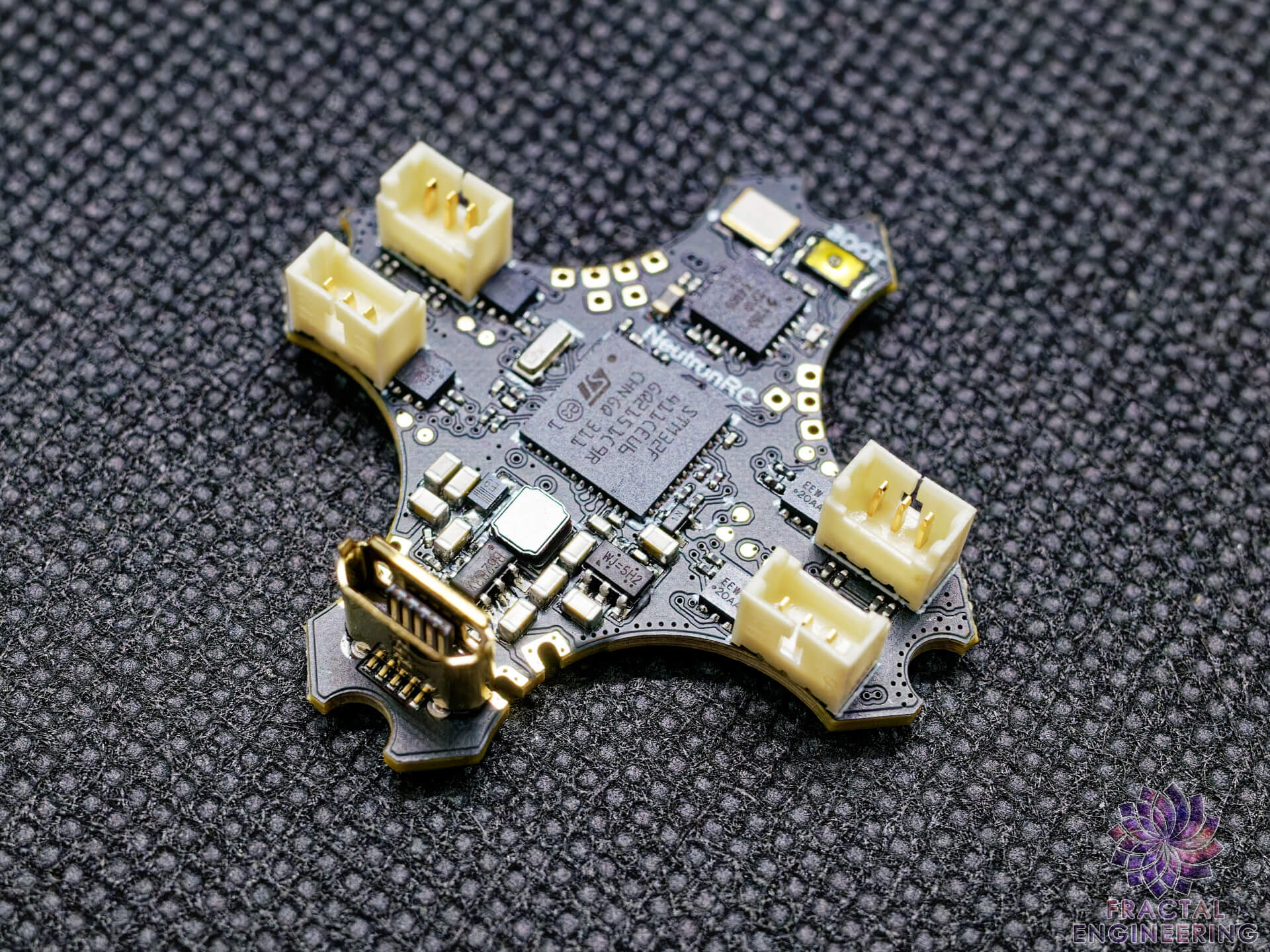

NeutronRC ELRS F411 1S 5A

Description

Features

• A lightweight and cost-effective AIO FC
• Great fit for both Whoop and Wingman frames, discrete analog or HD VTX
• Motor plugs with larger pads for easier soldering on your motors
• Fractal Special: Unsoldered (but included) motor plugs and smt antenna for tighter builds

Specifications:

• MCU: STM32F411CEU6
• IMU: ICM-20689
• RX: SPI ELRS 2.4G
• RX Antenna: IPEX linear dipole
• Serial ports: Fuill UART 1 and 2
• Size: 29 x 29mm

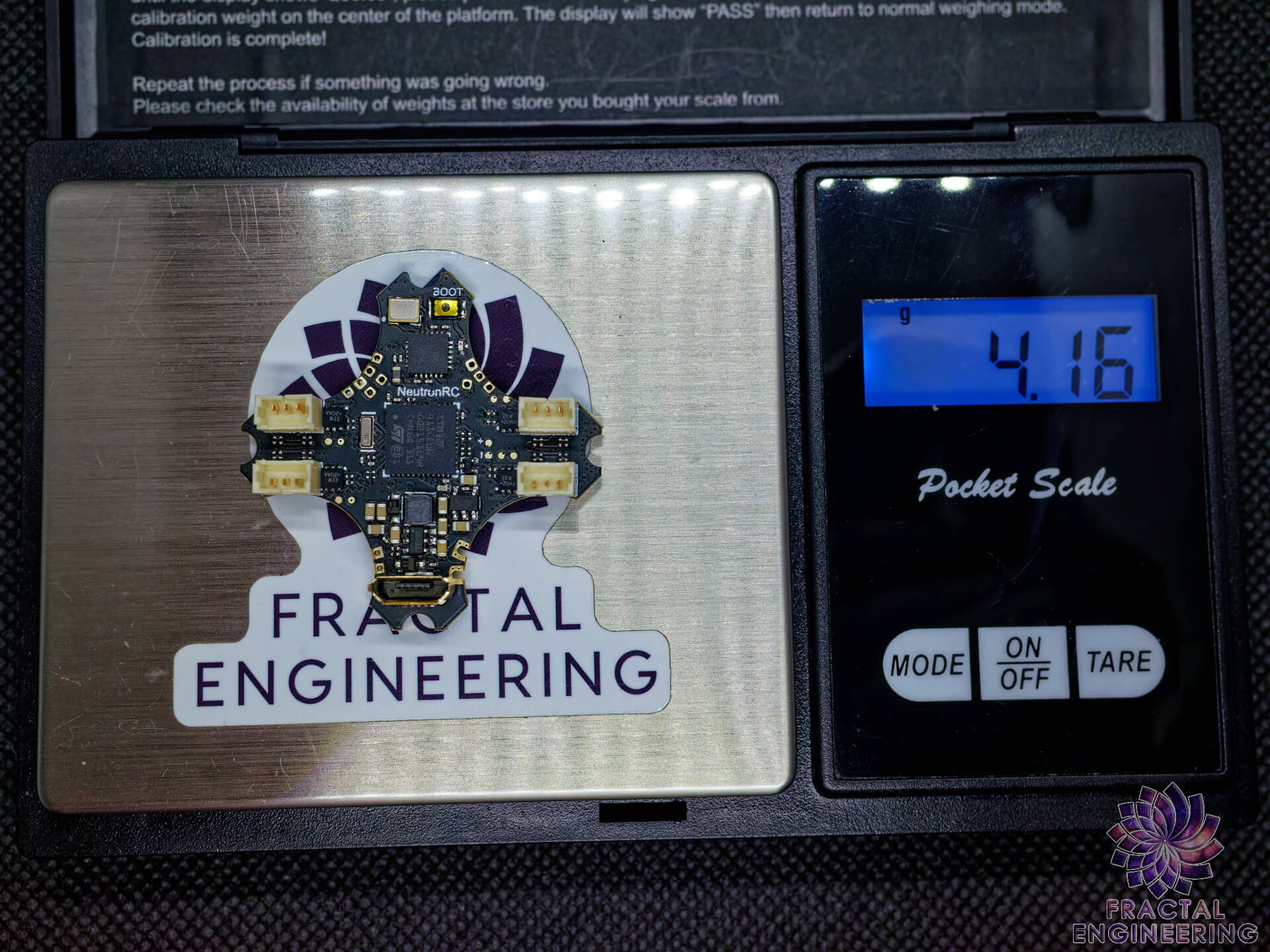

• Weight: 4g
• ESC: 5A BL_Heli S / Bluejay
• Onboard 16MB SPI FLashg Blackbox (recommend disabling in CLI/target if causing issues with Rx)
• Onboard programmable RGB LED

For more details on specs, pinout, flashing, setup, or anything else please check out the incredibly detailed manual from Neutron RC following this link

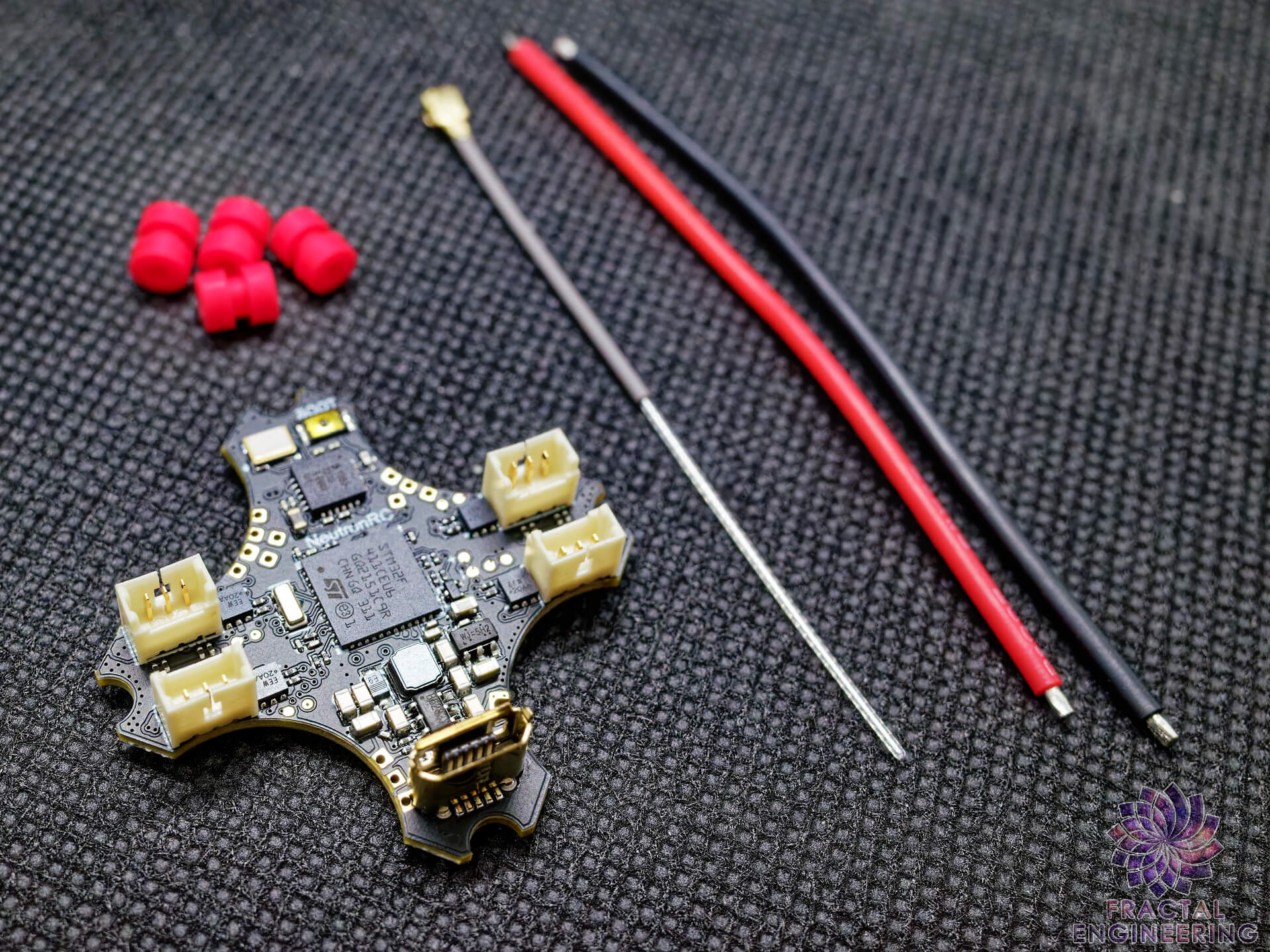

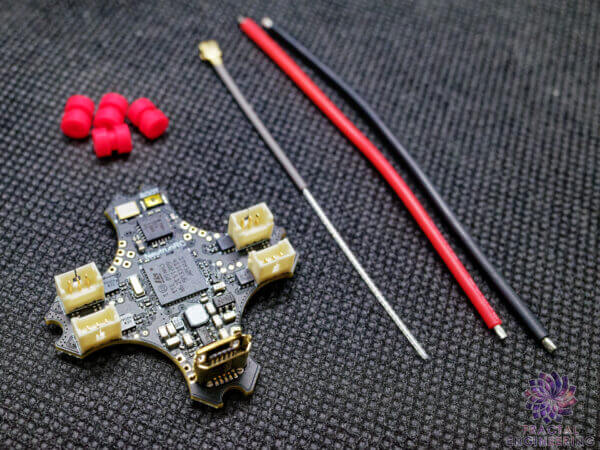

Contents:

• 1x AIO FC
• 2x AWG20 wires
• 1x 2.4g antenna
• 4x silicone mounting grommets
