TBS Podracer AIO

Description

Features

• A robust 2-6S AIO for your X-bow.
• Super clean and convenient to build with Crossfire receiver and/or Pro32 Nano VTX headers. (no wiring needed)
• BLHELI_32, 35A ESC controllers bring excellent throttle resolution with lots of current headroom.

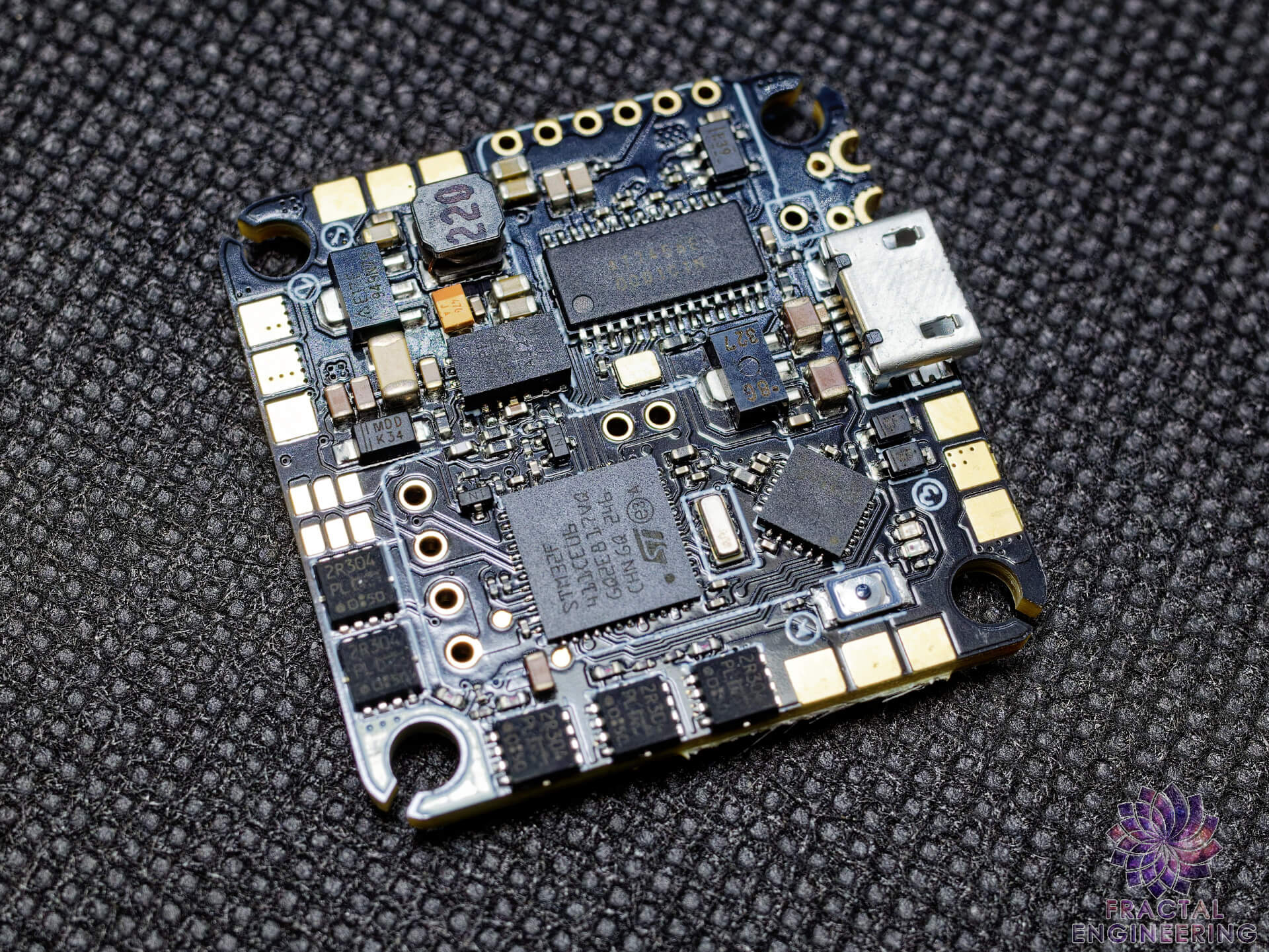

FC side

• Mounting holes: 25.5×25.5 mm / M2 holes
• Crossfire/Tracer RX CH1&2 > Uart 2 / Pro32 Nano VTX > Uart 1 / Uart 1(RX) – unavailable.
• Up to 6S input
• 5V BEC up to 1.2A continuous
• STM32F411 MCU (Support BetaFlight, Quicksilver)
• MPU6000 Gyro/ACC
• OSD chip Onboard (AT7456E)
• 2 available UART
• LC Filter for 5V VTX and Camera
• Direct solder connection for TBS Nano RX and TBS Unify Pro32 Nano
• Support programmable LED like WS2812 etc
• Built-in current sensor

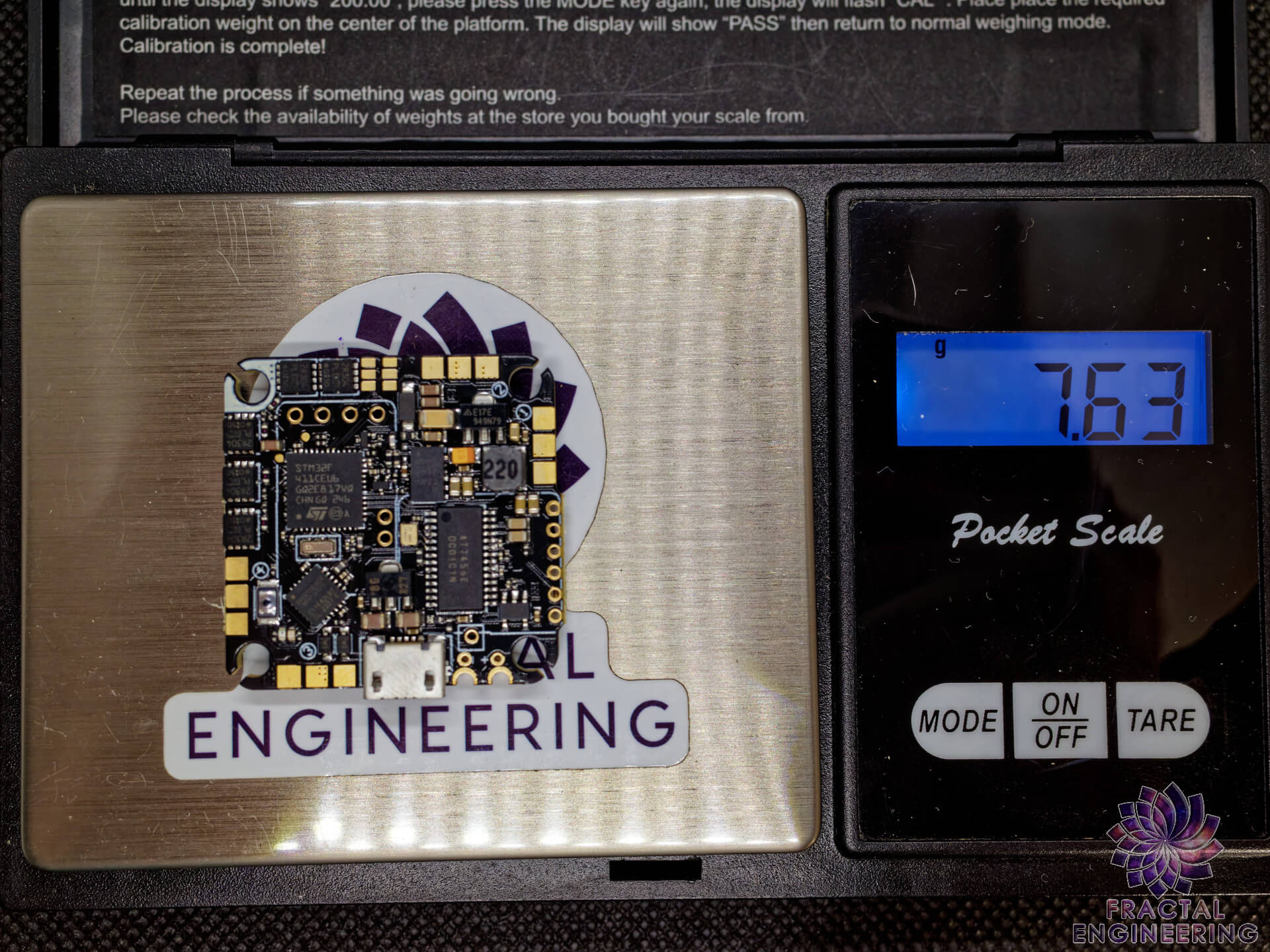

• Weight: 7.6g

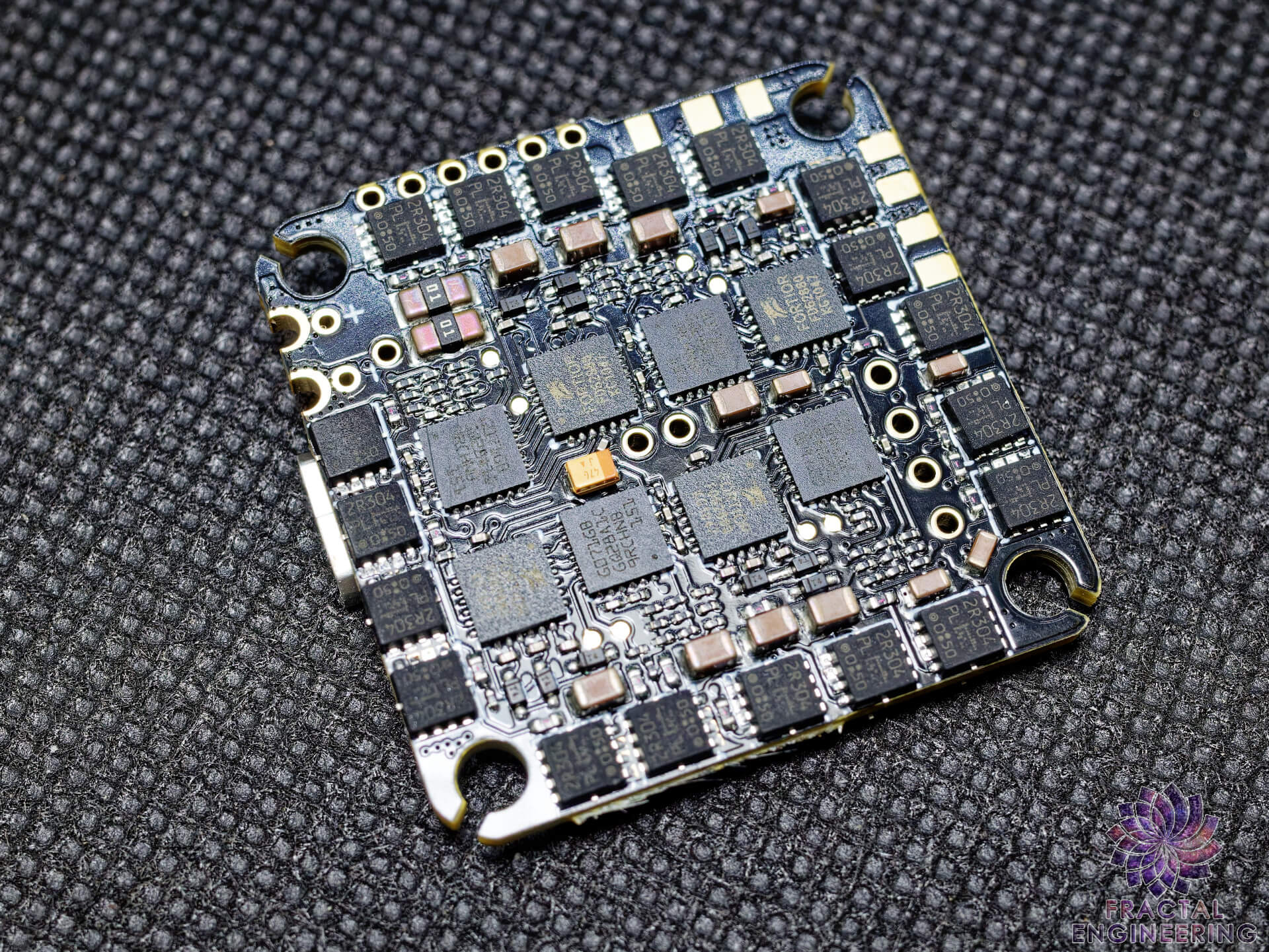

ESC side

• Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-6S Lipo
• Continuous current: 30A
• Peak current: 35A
• ESC firmware: BLHELI 32
• PWM Frequency Range: 24KHz up to 96KHz

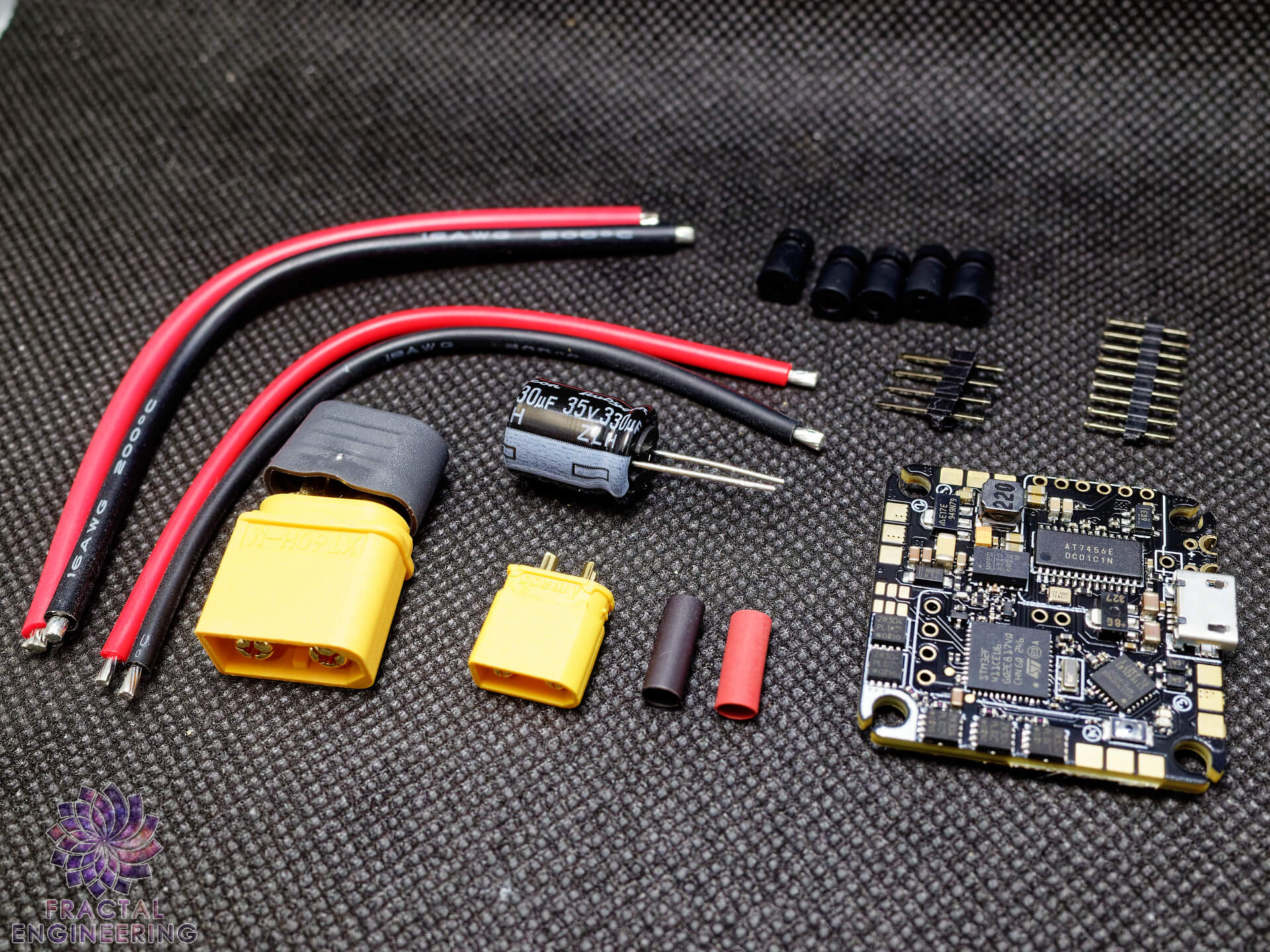

Includes

• 1 x TBS Podracer AIO
• 1 x Capacitor
• 1 x AWG cables set with shrink tubes
• 4 x mounting gromets
• 1 x XT60 (Male)
• 1 x XT30 (Male)
• 1 x Pinheaders set for TBS VTX and RX
