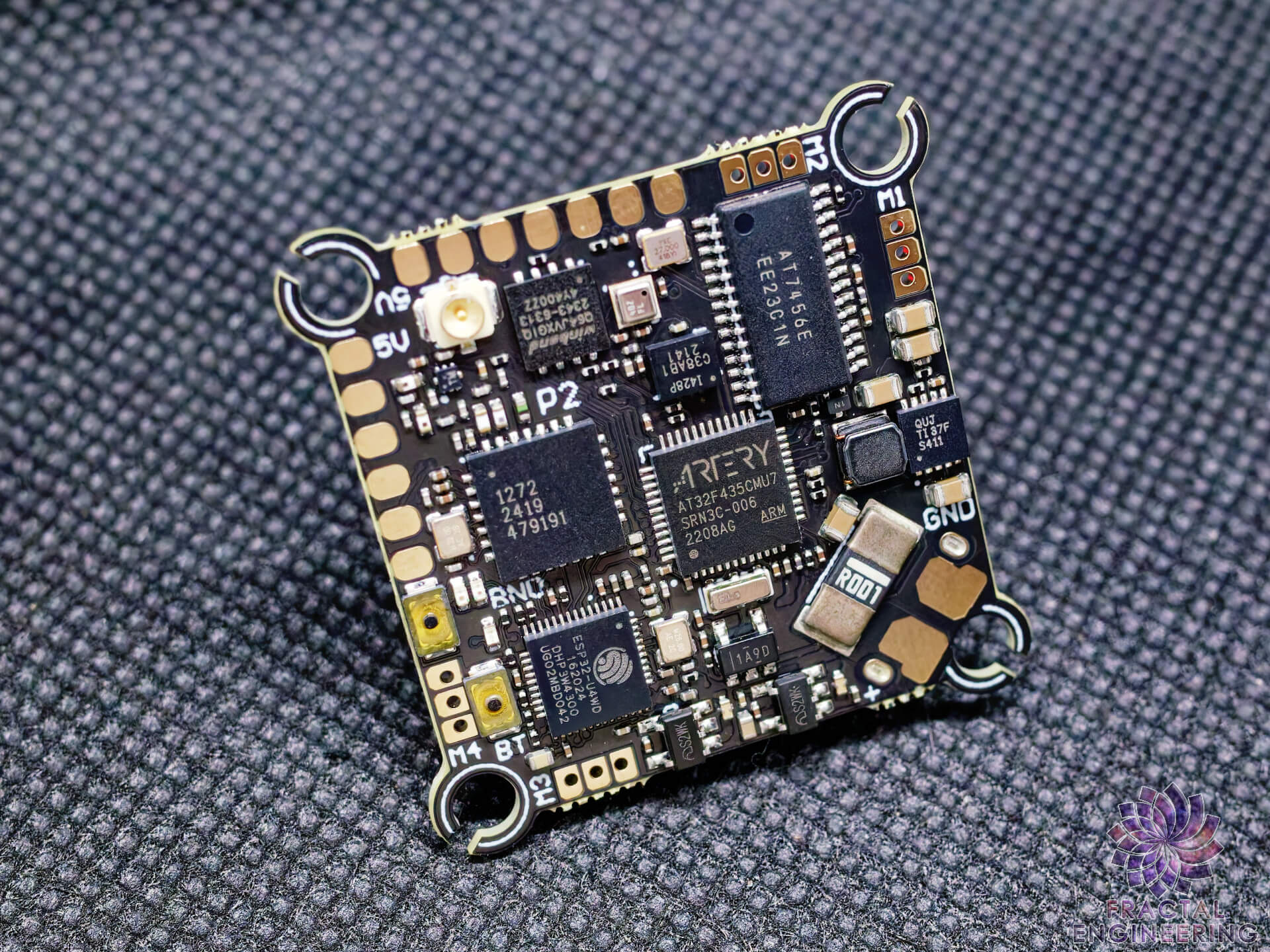

TBS Lucid AIO 1-2S

Description

Features

• An excellent AIO for your Wingman or F75
• Super fast and future proof AT32F435 mcu
• Outstanding AM32 ESCs with unparalleled throttle resolution and power delivery across the whole voltage range
• Onboard Crossfire receiver: dead easy updates, never worry about failsafes ever again.
• Codeveloped with yours truly
• Basically the best 1-2S AIO you can buy today.

Specs

• MCU: AT32F435RMT7, 288MHz
• Gyro: ICM-42688P

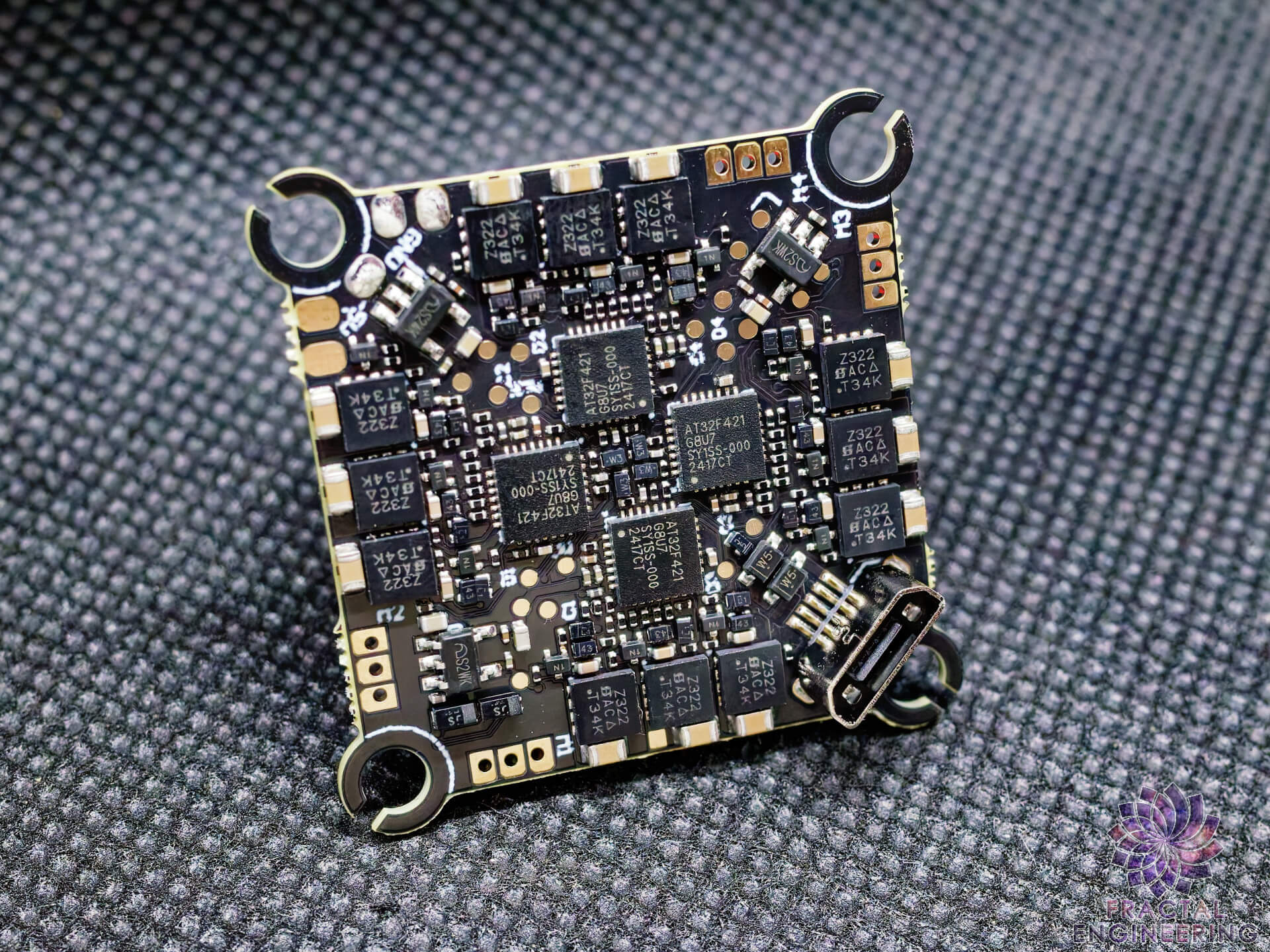

• ESC: 4 x 7A (24A total max) with telemetry and current sensor
• BEC: 5V 2A
• OSD: AT7456E
• Blackbox: 8M
• UARTs: 3 full (1, 3, 5) + Tx2 for smart audio
• Input: 1S-2S
• Size: 28mm x 28mm (30mm x 30mm outer dimensions)
• Mounting: 25mm*25mm

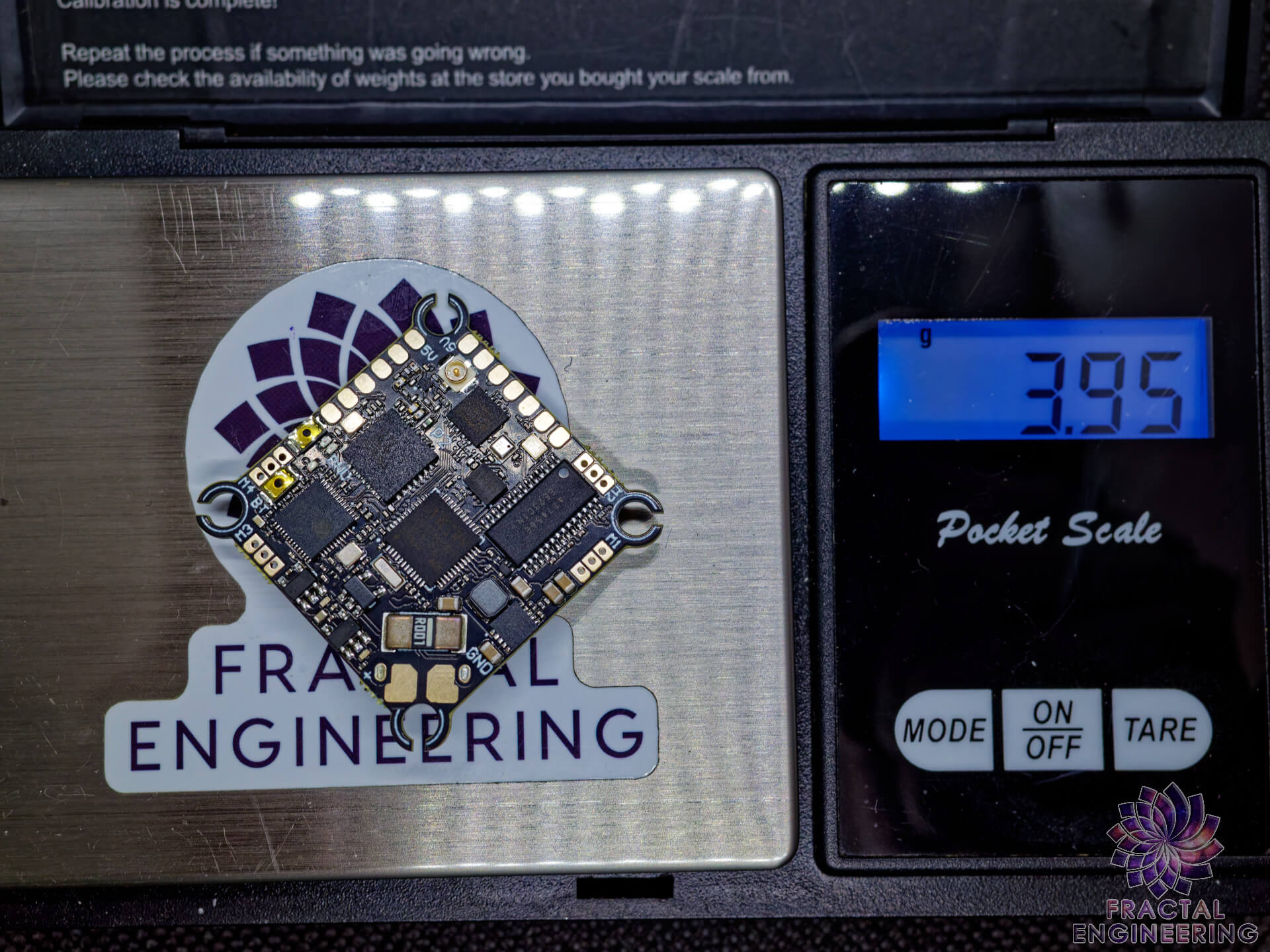

• Weight: 4g

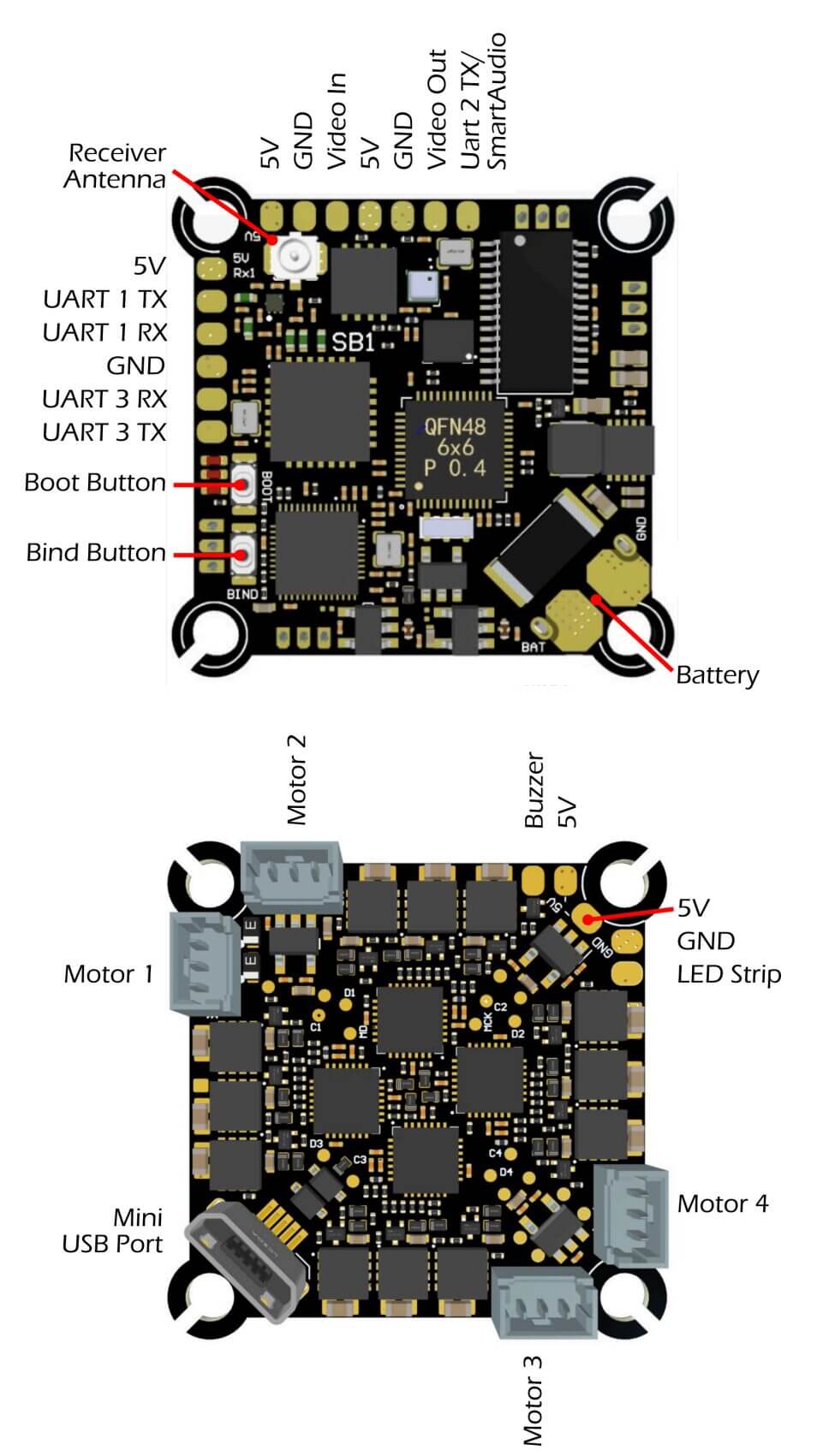

Default/recommended port assignment:

• UART1: Spare
• UART2: Smart Audio
• UART3: DJI O3 Air Unit
• UART5: CRSF Rx (included on the board)

Sensor Scaling Settings

• Current Sensor: Scale: 1300, Offset: 0
• Voltage Sensor: Scale: 57, Divider Value：18. Multiplier Value：1

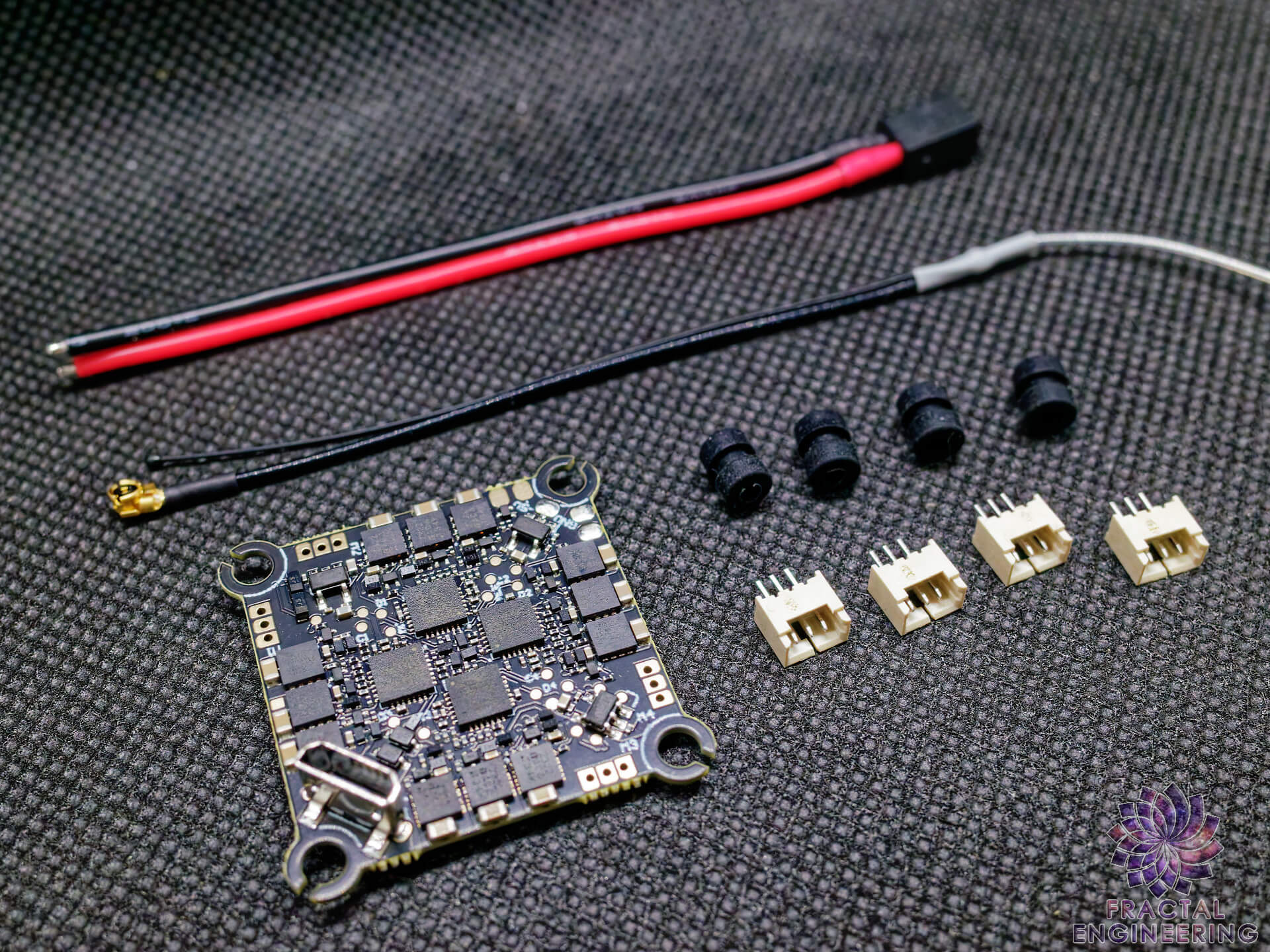

Includes

• 1 x TBS Lucid AIO
• 1 x TBS Crossfire “Micro RX” antenna
• 1 x A30 Pigtail (with 80mm, 20AWG wire; trim plug off for Wingman)
• 4 x rubber grommets
• 4 x motor sockets (for plug & play)

Link to Manual
