Description
Features
- A super robust, compact and feature packed AIO for 2-4S builds such as the X-bow
- 20A Bluejay ESC, plenty of headroom for a 3.5″ build
- Serial ELRS; none of that SPI rubbish
- Compact overall dimensions, perfect fit in a X-bow stack
- Motor plugs need to be unsoldered to fit in X-Bow; I’ll try to get them to come unsoldered next time
Specifications:

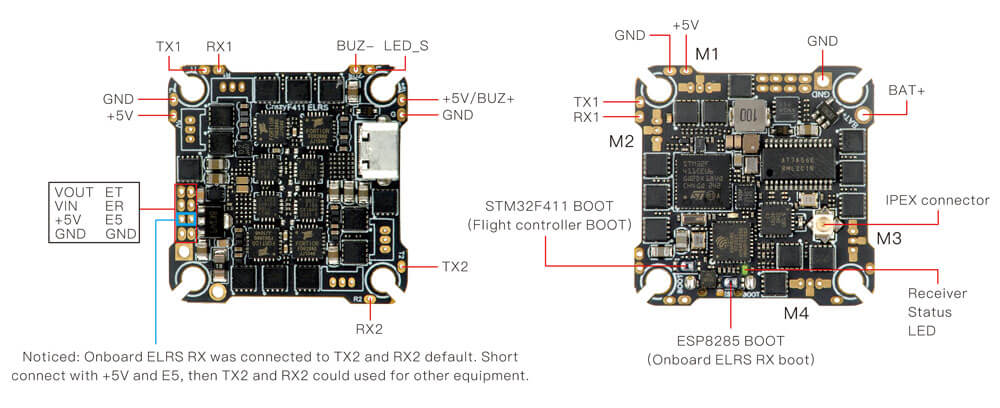

| Flight controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM42688P or BMI270 (SPI Control) Mount pattern: 25.5×25.5 M2 Size:32*28*9mm Power supply: 2-4S Lipo battery Built-in 20A Blheli_s ESC each Built-in Betaflight OSD(SPI Control) Built-in UART ExpressLRS 2.4GHz receiver Built-in 5V 1.5A BEC Flight controller firmware target: CRAZYBEEF4DX |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Currents: 20A continuous peak 25A (5 seconds) Support BLHeliSuite programmable Factory firmware: Bluejay 0.18.1Firmware target: F_H_40_48_v0.18.1 Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna plug: IPEX Telemetry output Power: <12dBm Receiver protocol: CRSF Default firmware version: ExpressLRS V3.0.1 Firmware target:HappyModel EP1/2 2400 RX |
| Onboard voltage and Amperage meters settings | Voltage meter scale setting 110 Amperage meter scale setting 470 |
Includes:
1x CrazyF411 Flight controller
1x XT30 pigtail
1x 2.4G dipole antenna
4x Soft mounting grommets
4x Extra 180deg motor plugs
Setup:
More infos on binding and betaflight setup on Happymodel’s product page
