Description
Features
- One of the lightest 14mm nano cams
- Only 2.69g (nice) with wire
- Extended 150mm wires with 1.5mm JST-ZH plug (fits right into your HM AIO)
- High resolution 1200 TVL
- Black only
Specifications
- Model: Caddx Ant
- Image Sensor: 1/3″ CMOS Sensor
- Horizontal Resolution: 1200 TVL
- TV System: NTSC or PAL
- IMAGE: 16:9 or 4:3
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >52dB (AGC OFF)
- Video Output: CVBS
- Lens: 1.8mm
- Min. Illumination: 0.001Lux@F1.2
- Auto Gain Control: YES
- BLC: YES
- WDR: Global WDR
- DNR: 3D DNR
- Dimensions: 14*14mm
- Wide Power Input: DC 3.7-18V
- Work Temperature: -20-60°C
- Work Humidity: 20%~80Caddx Ant 16:9 Silver

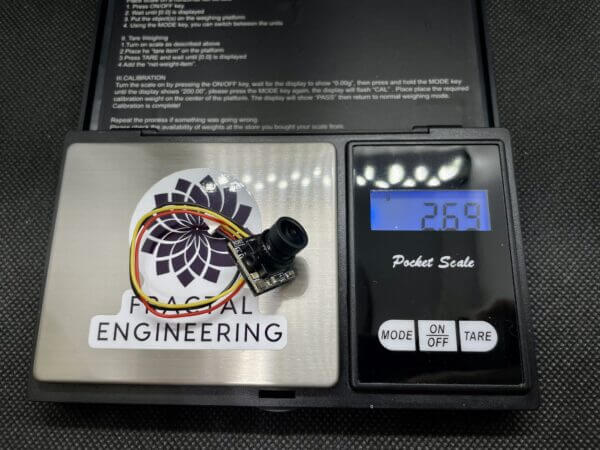

- Weight: 2.69g

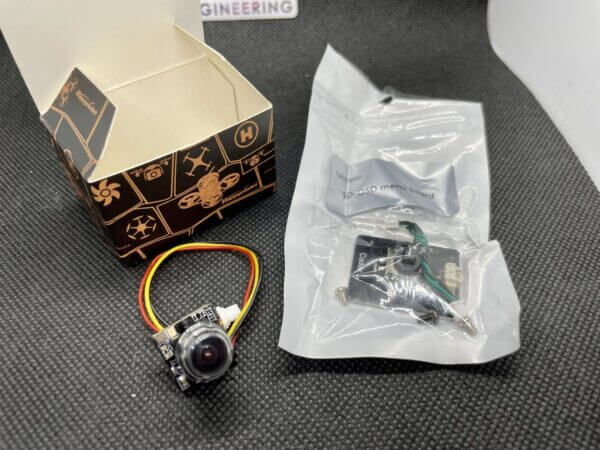

Includes
- 1 x Ant FPV Camera
- 1 x OSD menu board
- 4 x Screws
Kyle I. (verified owner) –
I love the Caddx Ant ant Caddx Ant Lite.
They can be pretty good in some low light conditions and look great during the day.
You might need to bump up goggle brightness or some bits to fly at night, or plug in the little Caddx board to adjust bits.
I do have one small negative, the Caddx Ant of mine did break but this is not the fault of Fractal.
Fractal recommends making a little tight 3D Print to go under the camera on the carbon plate. (not in the instructions)
This will stop you with the common issue where a cap on the lower camera can end up being popped off in a crash, especially when the camera hits the carbon in a crash.
@kyleirelandtech
Jon Paul (verified owner) –
I have always liked Caddx Atom cameras for my tiny whoops… They have a good image & color with 9ms latency, perfect for my kind of flying indoors & outside… Plus for me it is the only Caddx camera that doesn’t have dust inside the lens :-)))))) Plus you can always find an ant camera somewhere when you need it… Fractal is the only shop that carries these Ant Cameras with the right wiring for the Mobula 8, thanks :-)))
Alejandro (verified owner) –
Best quality cam I used yet especially low light.foxeer pick is good for day use but this is all around best 24h can.
